AKA Signum
Deep-search precision engineered by AKA Intronika for professional treasure hunters.
Overview

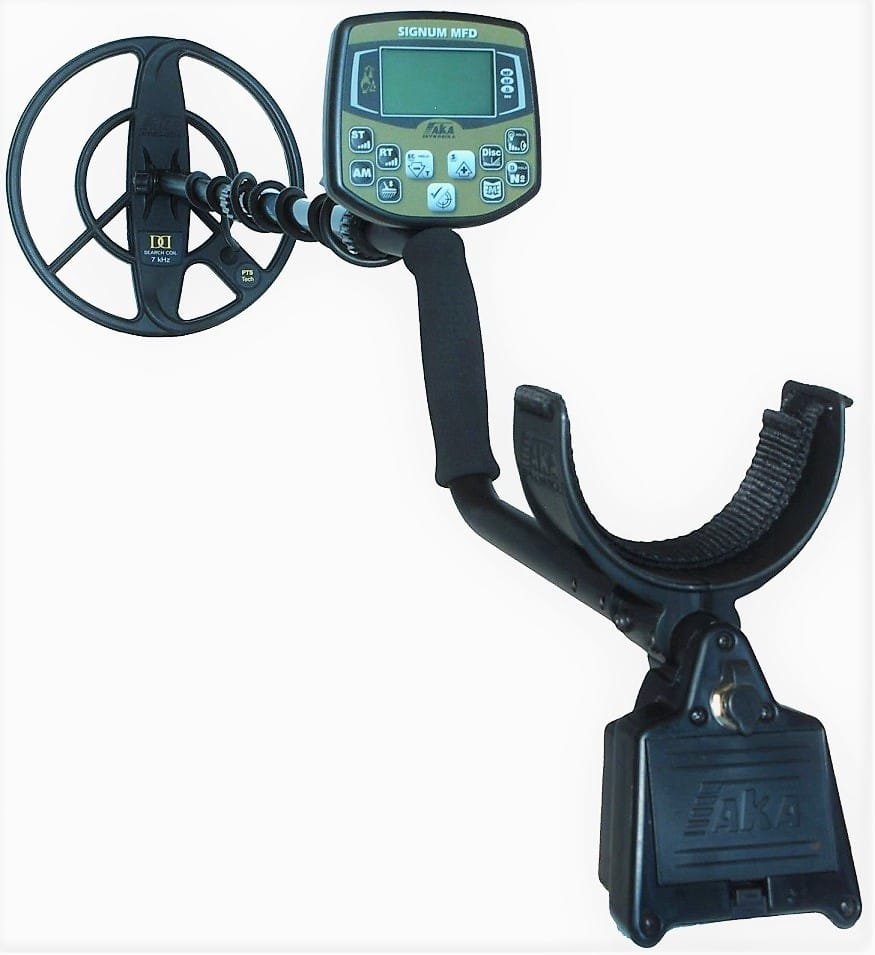

The AKA Signum MFD is a computerized, high-sensitivity, multi-frequency metal detector engineered by AKA Intronika of Moscow, Russia. It uses AKA's patented space-harmonic filtering (SFT) technology and a distinctive 'hodograph' target-identification method, giving operators an exact graphical read on buried targets that few competing detectors can match.
An electronic unit transmits and processes signals across a 1-30 kHz range, with an automatic compensator that pushes sensitivity to roughly 65cm on a 25mm coin when paired with the 10" DD/7kHz coil. Three selectable discrimination algorithms (MSF, SSF, MM) let the operator tune the detector for iron-heavy ground, mixed terrain, or maximum all-round performance.
Dynamic and static search modes, automatic and manual ground balance with adjustable readjustment speed, hot-rock suppression, and a dedicated Turbo mode for extreme depth make the Signum suited to serious deep-search and relic-hunting work. The waterproof control housing and quick-release coil mount allow fast field changes between AKA's range of dedicated deep-search coils.
Key features
Space-Harmonic Filtering (SFT)
patented signal-processing technology unique to AKA that sharpens target identification and cuts false signals
Hodograph Target ID
displays a spectral-graphic hodograph of each target on the 128x64 LCD for precise, visual identification
1-30 kHz Multi-Frequency Range
transmits and processes signal across a wide frequency band for flexibility across soil types and target sizes
Turbo Deep-Search Mode
an additional program dedicated to locating large objects at extreme depth
Triple Discrimination Algorithms
switch between MSF, SSF, and MM modes to match iron-heavy, mixed, or open ground conditions
Automatic & Manual Ground Balance
self-corrects for mineralized soil with adjustable readjustment speed, or can be set manually
Waterproof Control Housing

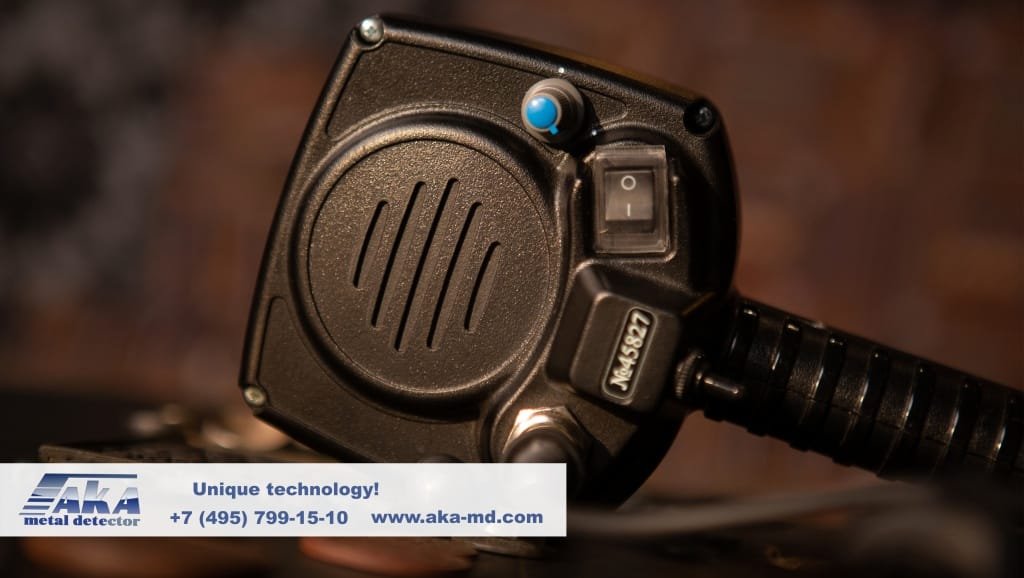

sealed electronic control unit with a quick-release, tool-free coil mount for fast field swaps
Technical specifications
| Depth | 5-6 feet |
|---|---|
| Made In | Russia |
| Warranty | 2 Years |
| Operating Principle | VLF induction balance with space-harmonic filtering (SFT) |
| Operating Frequency | 1-30 kHz (multi-frequency) |
| Detection Depth | 5-6 feet |
| Display | 128x64 pixel LCD with hodograph spectral-graphic target display |
| Search Modes | Dynamic and static, with RT (Real Time) and ST search channels |
| Discrimination Algorithms | MSF, SSF, MM selectable programs |
| Ground Balance | Automatic and manual, with adjustable auto-correction speed |
| User Programs | 4 user-programmable presets with instant access |
| Coil Compatibility | Compatible with 22 AKA search coils, from 6" (14 kHz) to 18" deep-search DD coils (3 kHz) |
| Power Source | 6 x 1.5V AA batteries |
| Battery Life | Up to 20 hours depending on mode |
| Weight | 1.3 kg (without batteries, control unit only) |
| Housing | Waterproof control module, quick-release coil mount |
| Manufacturer | AKA Intronika |
What’s in the box
- AKA Signum MFD control unit
- Telescopic shaft / rod set
- Search coil (per configuration ordered)
- Coil connection cable
- Armrest with strap
- 6x AA batteries
- User manual
Ideal for
Deep relic hunting
A strong fit for locating large, deeply buried relics and historical objects with the AKA Signum.
Mineralized and iron-heavy ground
A strong fit for working difficult, iron-contaminated or mineralized soil with the AKA Signum.
Professional treasure hunting operations
A strong fit for professional and semi-professional treasure hunting teams with the AKA Signum.
Coin and cache recovery
A strong fit for pinpointing coin caches and buried valuables at depth with the AKA Signum.
