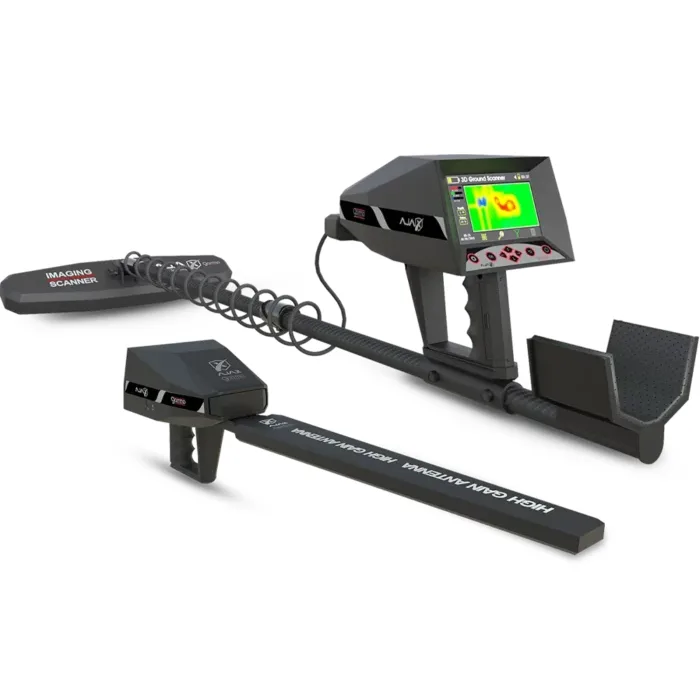

Ajax Gamma
A 3D imaging detector with three dedicated systems, 3D Ground Imaging, Live Scan and Gradio Smart, for finding gold, metal objects and underground voids and seeing them on screen.
Price on request — contact us on WhatsApp
SKU AJAX-Gamma
Overview
The Ajax Gamma is built around ground imaging rather than long-range search. It brings together three systems, 3D Ground Imaging, Live Scan and Gradio Smart, so the user can scan a site, watch readings in real time, and then study a 3D picture of what lies below. It is a good choice when you already have a suspected spot and want to understand what is buried there.
In Live Scan mode the screen colours readings as you walk: green for normal soil, red for metal and blue for voids or caves. The 3D system uses four scanning sensors in the imaging scanner to build a picture of the target, while Gradio Smart reads changes in the magnetic field to pick up metals and cavities closer to the surface. The unit can be used hand-held or mounted, and connects to a tablet for a larger view.
Ajax rates the 3D and Live Scan systems to about 30 metres and Gradio Smart to about 10 metres; these are manufacturer figures and actual results depend on target size and ground. Typical uses include gold and treasure search, cavity detection, archaeology, mining and locating pipes or cables. A 7.4 V battery gives around 10 hours, and the Gamma has a two-year warranty.
Ajax Gamma price in Karachi & Pakistan
The Ajax Gamma is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
Ajax Gamma key features
3D Ground Imaging
Four scanning sensors build a 3D image of buried objects and cavities.
Live Scan colour view
Real-time display marks soil in green, metals in red and voids in blue.
Gradio Smart system
Magnetic-field analysis picks up metals and voids up to about 10 m.
Tablet connectivity
Connects to a tablet for a larger, clearer view of scan results.
Scan storage
1 GB memory stores up to 1000 scans for later analysis.
PIN security
A configurable PIN restricts who can use the device.
Technical specifications
| Detection System | 3 systems: 3D Ground Imaging, Live Scan, Gradio Smart |
|---|---|
| Operating Principle | Digital signal processing converted to visual and audible results |
| 3D Ground Imaging Depth | Up to 30 m (manufacturer claim) |
| Live Scan Depth | Up to 30 m (manufacturer claim) |
| Gradio Smart Depth | Up to 10 m (manufacturer claim) |
| Processor | MIPS 32, M4K Core |
| Display | 5-inch TFT colour LCD, 800 x 480 WVGA, 16-bit colour |
| Battery | 7.4 V, 3300 mAh rechargeable |
| Battery Life | Typical 10 hours |
| Storage | 1 GB, up to 1000 scans |
| Bluetooth | 2.4 GHz, sensitivity up to -80 dBm |
| Languages | 8 languages |
| Package Dimensions | 88 x 53 x 20 cm |
| Package Weight | 7 kg |
| Operating Temperature | -10 °C to 60 °C |
| Warranty | 2 years |
| Manufacturer | AJAX Detection Technology LTD |
What’s in the box
- Ajax Bag
- Tablet
- Stick
- Imaging Scanner
- Gradio Smart Sensor
- Power Adapter
- Headphone
Ideal for
Cavity and tunnel search
Voids show clearly in blue on the live scan display.
Confirming a target
3D images help judge shape and depth before digging.
Archaeology and mining
Imaging suits structured survey work on known sites.
