Lorenz Deepmax Z2
German-engineered pulse induction system for long-range, deep-target ground scanning.
Overview
The Lorenz Deepmax Z2 is a professional-grade pulse induction ground scanner manufactured in Germany by Lorenz Detecting Systems. Built around the company's Pulse Ground Balancing System (Pulse GBS) and Pulse Shaping Technology (PST), it is engineered for treasure hunters, archaeologists, and geologists who need dependable depth on large, deeply buried targets.

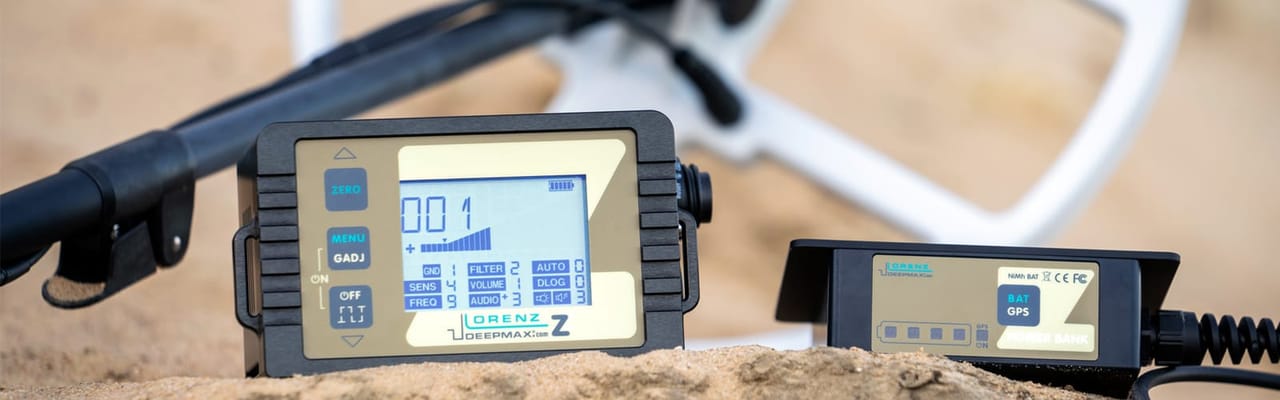

A CNC-machined anodized aluminum control housing and a simplified LC display keep the unit rugged and straightforward to operate in the field, while differential electromagnetic noise cancellation lets it work reliably near power lines and other sources of interference.

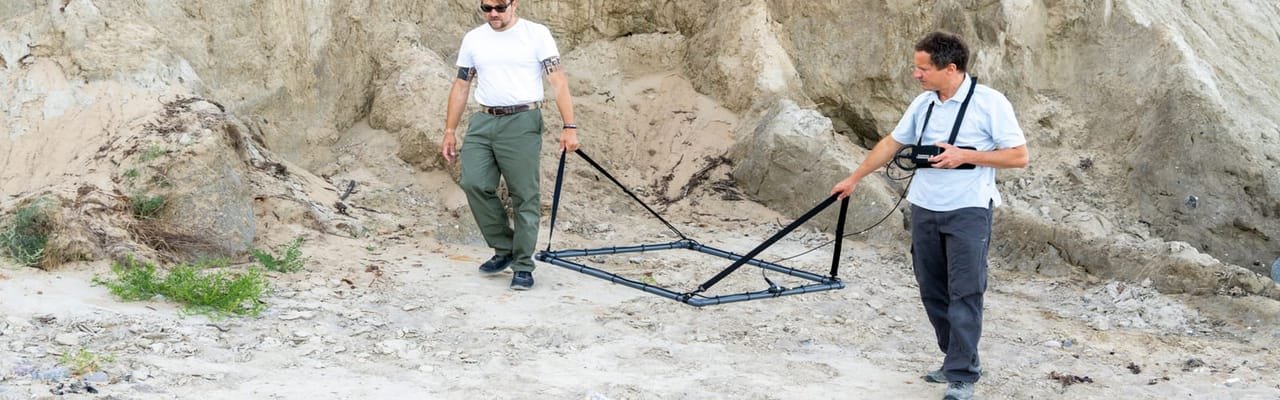

The Deepmax Z2 accepts a range of interchangeable coils, from compact 26cm DD coils for coins and gold nuggets to large 1m x 1m frame coils for long-range detection of bulk metal, cavities, and voids at extended depth.
Key features
Pulse GBS Ground Balancing
automatically compensates for mineralized and saline ground so depth and stability hold steady across changing terrain.
Pulse Shaping Technology (PST)
refines the transmitted pulse waveform to sharpen sensitivity and push detection range on large, deep targets.
Interchangeable Coil System
runs on 26cm, 35cm, 44cm and 1m x 1m frame coils so one control unit adapts from coin-sized targets to long-range bulk searches.
Differential Noise Cancellation
filters out electromagnetic interference from power lines and nearby structures for a cleaner signal in built-up areas.
Rugged Aluminum Control Housing
is CNC-machined from a single block of anodized aluminum to withstand demanding field conditions.
Multi-Channel Data Logger (Optional)
records scan data for post-survey 2D/3D mapping and metal-type analysis using Lorenz Scripter and Surfer software.
All-Condition Reliability
keeps performance stable in saltwater, highly mineralized ground, and a wide range of operating temperatures.
Technical specifications
| Depth | 14-15 feet |
|---|---|
| Made In | Germany |
| Warranty | 2 Years |
| Operating Principle | Non-motion Pulse Ground Balancing System (Pulse GBS) with Pulse Shaping Technology (PST) |
| Detection Range | Long-range detection of large non-ferrous metal objects, cavities and voids; small coils tuned for coins and gold nuggets |
| Ground Balance | Automatic Pulse GBS with preset, two-step automatic and manual modes |
| Coil Options | 26cm, 35cm, 44cm and 1m x 1m frame coils (single and double configurations) |
| Control Unit Weight | Approx. 1.4 kg (3 lbs) |
| Coil Weight | 0.55-0.9 kg depending on coil size |
| Battery Life | 3-8 hours depending on temperature, coil and settings |
| Power Source | Rechargeable low self-discharge battery pack with fast charger (100-240 VAC, worldwide use) |
| Display | LC display with simplified control layout |
| Environmental Resistance | Saltwater-resistant, stable in highly mineralized ground and wide temperature ranges |
| Manufacturer | Lorenz |

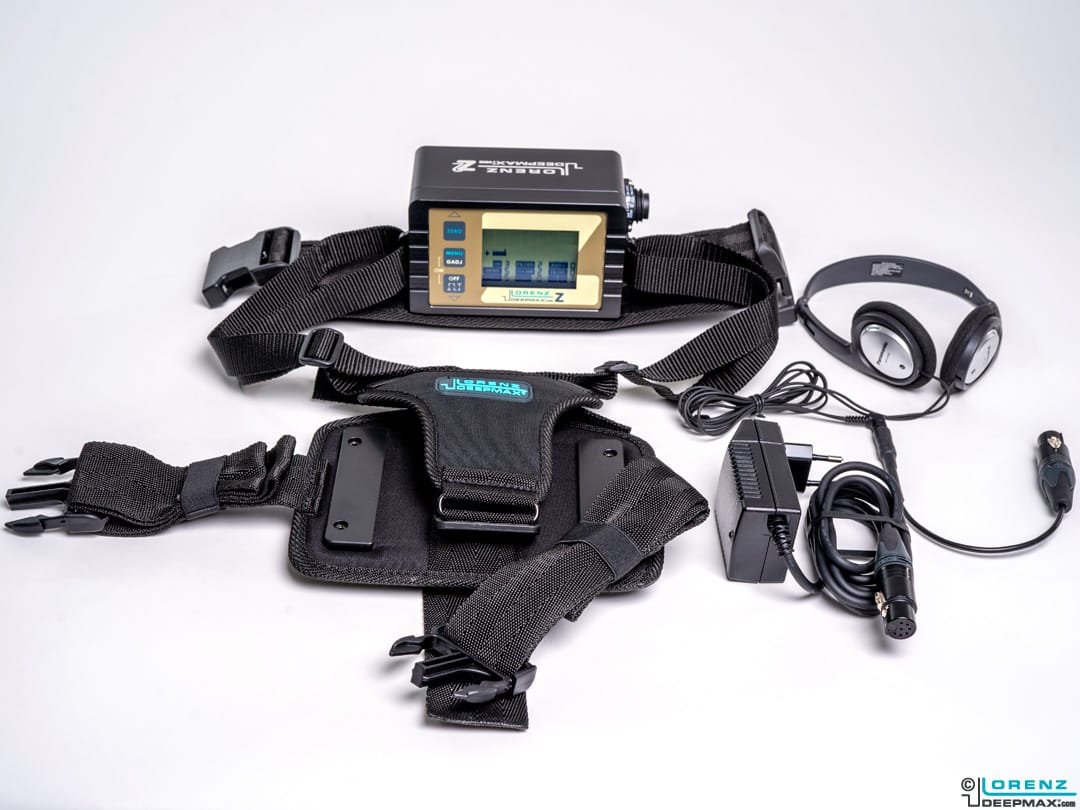

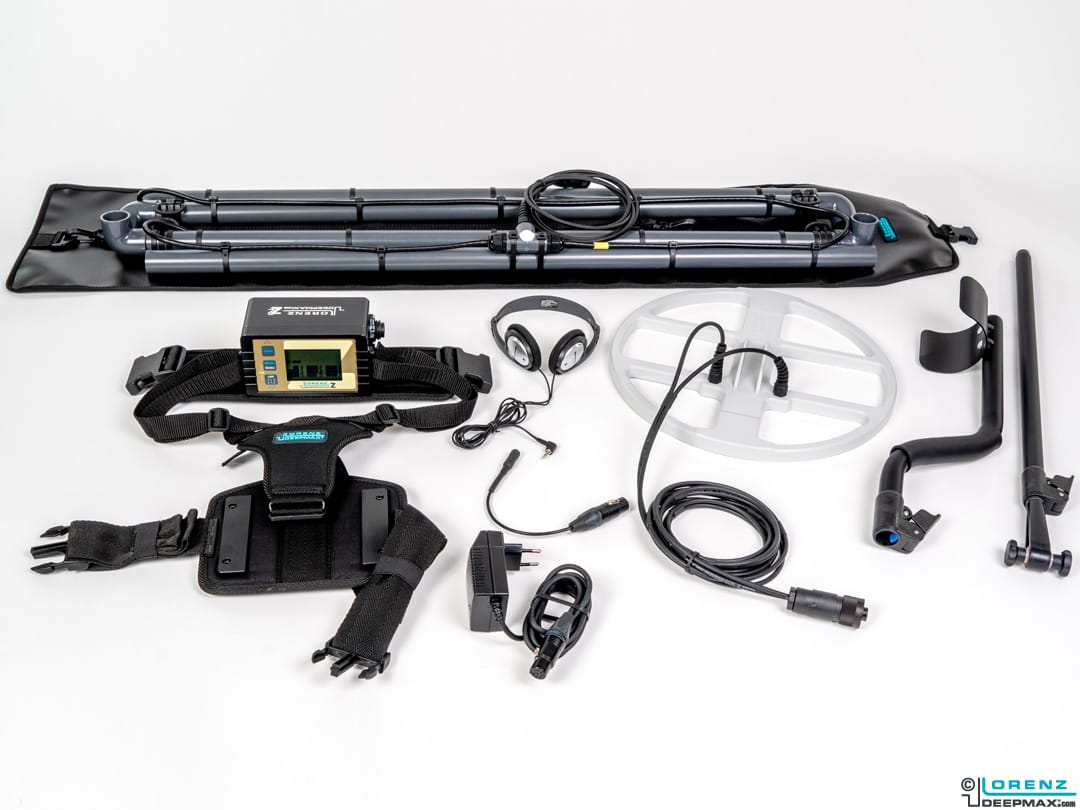

What’s in the box
- Control box electronics
- Adjustable shoulder and belt strap
- Fast charger (100-240 VAC)
- Stereo headphones with adapter
- 1m x 1m frame coil with carrying straps
- Carrying bag for frame coil
- 35cm DD search coil
- Three-section telescopic rod
- Instruction manual (English)
Ideal for
Long-Range Treasure Hunting
A strong fit for long-range treasure hunting with the Lorenz Deepmax Z2.
Cavity and Void Detection
A strong fit for cavity and void detection with the Lorenz Deepmax Z2.
Archaeological Surveys
A strong fit for archaeological surveys with the Lorenz Deepmax Z2.
Professional Geological Prospecting
A strong fit for professional geological prospecting with the Lorenz Deepmax Z2.
