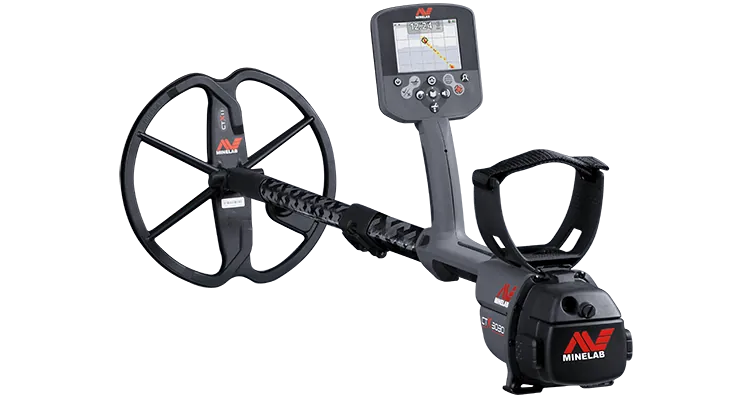

Minelab CTX 3030
The CTX 3030 is the FBS 2 model with built-in GPSi mapping, a colour screen, Smartfind 2 two-dimensional discrimination and full submersion to 3 meters.
Price on request — contact us on WhatsApp
SKU 3228-0101
Overview
The CTX 3030 is Minelab's most advanced all-around detector, pairing multi-frequency FBS 2 technology with Smartfind 2 discrimination for reliable results across every soil type. A full-color LCD screen gives you a clear readout for every target.
The built-in GPSi system logs GeoTrails, WayPoints, and FindPoints with high accuracy, so you can retrace productive ground and return to it later, with data exportable to Google Maps via XChange 2 software.
Wi-Stream wireless audio through the included WM 10 module keeps response instant, and Koss UR30 headphones are included as well. The detector is fully waterproof to 3 meters (10 feet), with a comfortable design that positions battery weight behind the armrest.
Five preset search modes cover 20 customizable discrimination patterns (two per mode), while Target Trace separates multiple overlapping targets — such as iron next to a coin, or a coin against mineralized ground — for greater accuracy in cluttered sites.
Minelab CTX 3030 price in Karachi & Pakistan
The Minelab CTX 3030 is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
Minelab CTX 3030 key features
FBS 2 Technology
Transmits and processes multiple frequencies between 1.5 and 100 kHz for consistent performance across varied ground conditions.
Smartfind 2
Generates 1,750 discrimination combinations from 35 ferrous and 50 conductivity readings for finer target identification.

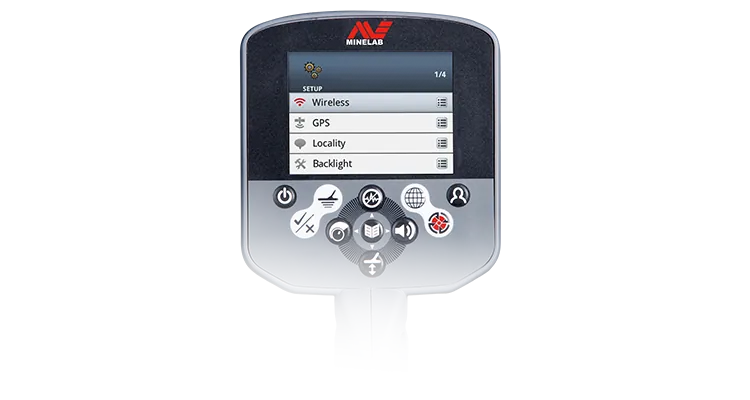

Full-Color LCD Screen
Displays complete target details clearly on a bright, easy-to-read full-color screen.
Built-in GPSi
Records and tracks the exact location of each detecting session for accurate return visits.
Wi-Stream Wireless Audio
Delivers near-instant audio response through the included WM 10 wireless module.
Waterproof to 3 Meters
Works equally well on dry land, at the shoreline, or wading in shallow water.
5 Search Modes and 20 Discrimination Patterns
Offers extensive customization so settings can be tuned precisely to personal search preferences.
Technical specifications
| Depth | 4 feet |
|---|---|
| Made In | Australia |
| Warranty | 3 Years |
| Technology | FBS 2 multi-frequency with digital coil-to-control-box communication |
| Frequency Range | 1.5 to 100 kHz |
| Discrimination | Smartfind 2: 35 ferrous x 50 conductivity = 1,750 discrimination patterns |
| Noise Cancel | Automatic and manual (11 channels) |
| Sensitivity | Automatic and manual (130 levels) |
| Target Tones | Customizable: 1, 2-ferrous, 2-conductivity, 4-ferrous, 4-conductivity, 35-ferrous, 50-conductivity |
| Display | Full-color LCD with backlight and adjustable brightness (1-10) |
| Wireless Audio | WM 10 wireless module (included), under 10ms response time |
| Included Headphones | Koss UR30 (100 ohm) |
| Standard Search Coil | CTX 11 11-inch round Double-D waterproof coil |
| Length | 94 to 140.5 cm (37 to 55.3 in) |
| Weight | 2.36 kg including battery |
| Battery | Rechargeable lithium-ion battery with fast charger |
| Waterproofing | Fully submersible to 3 meters (10 ft) |
| Languages | 9 selectable languages |
| Computer Connectivity | XChange 2 compatible via USB |
What’s in the box
- Main control unit (control box) with color screen
- CTX 11 11-inch round Double-D waterproof search coil
- Koss UR30 headphones
- WM 10 wireless audio module
- Lithium-ion battery with fast charger
- Coil cover (skid plate)
- User manual
Ideal for
Maximum Discrimination Accuracy
The 1,750-pattern Smartfind 2 system gives serious detectorists the finest target discrimination Minelab currently offers.
GPS-Tracked Site Revisits
Built-in GPS logging lets hunters mark productive spots and come straight back to them later.
Parks, Fields, and Shallow Water
Waterproofing to 3 meters and adjustable frequencies make it equally capable on land or wading near shore.
Coins, Relics, and Jewelry in Clutter
Fine-grained discrimination patterns help separate valuable targets from trash in heavily littered ground.
Minelab CTX 3030 FAQs
What is the Minelab CTX 3030 price in Pakistan?+
The Minelab CTX 3030 is priced on request because import costs change often. Message Pakistan Detector Technologies on WhatsApp for today's price in Karachi and across Pakistan. You get an original unit with a 3-year Minelab warranty, the CTX 11 coil, WM 10 wireless module and Koss headphones, and delivery anywhere in Pakistan.
Is the Minelab CTX 3030 waterproof?+
Yes. The CTX 3030 is fully submersible to 3 meters (10 feet), and the standard CTX 11 Double-D coil is waterproof. It works on dry land, at the shoreline or wading in shallow water. For actual diving, the Excalibur II is rated much deeper, to 60 meters.
CTX 3030 vs Manticore: which should I choose?+
The CTX 3030 uses FBS 2 (1.5 to 100 kHz) with built-in GPSi, 1,750-pattern Smartfind 2 and 3 m waterproofing, at 2.36 kg. The Manticore uses Multi-IQ+, a 2D ID map, 10 search profiles and IP68 to 5 m, at 1.3 kg. Pick the CTX for GPS logging, the Manticore for lighter weight.
