Minelab GPZ 7000
The Minelab GPZ 7000 is Minelab's ultimate flagship gold detector, built on exclusive ZVT (Zero Voltage Transmission) technology that generates highly stable magnetic fields for exceptional sensitivity and up to 40% more depth than the GPX series. Its smart Super-D coil reduces ground interference, while 256-channel noise cancelling, built-in GPS for logging locations, and low-latency wireless audio make it the first choice for professional prospectors working difficult, previously-worked goldfields.
Overview
The GPZ 7000 is an ultra-deep, ultra-sensitive gold detector that takes prospecting to the next level with exclusive ZVT technology, generating powerful, continuously stable magnetic fields that boost gold sensitivity even in hot rocks and complex ground.
Its 14×13-inch Super-D coil combines a central transmit coil with two outer receive coils, dramatically reducing magnetic ground interference and lowering ground noise. Combined with 256-channel noise cancelling, it lets you hear the sound of gold without clutter.
Built-in GPS, powered by a u-blox engine, merges location and time data with the detector's settings to create WayPoint, FindPoint, and GeoHunt files compatible with XChange 2. Wireless audio via the WM 12 module, with under 10ms latency, gives you complete freedom of movement.
Key features
Exclusive ZVT technology
up to 40% greater depth than the GPX series.
Super-D coil
higher stability and sensitivity, and reduced ground noise.
256-channel noise cancelling
clear audio without airborne interference.

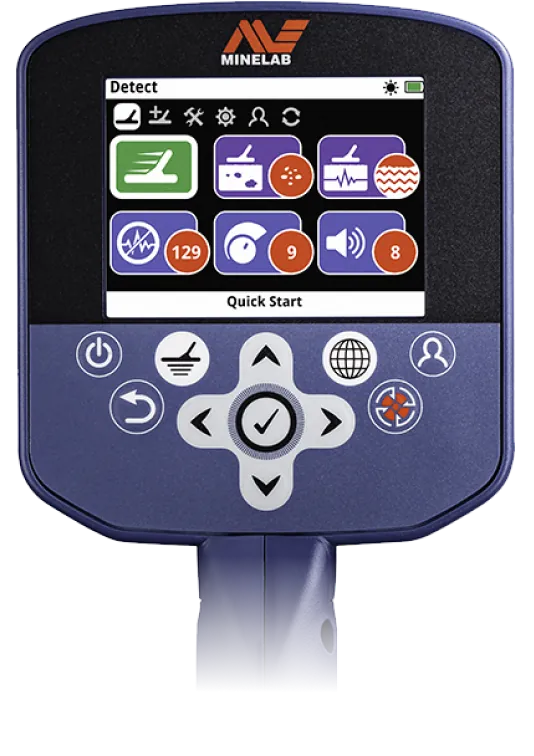

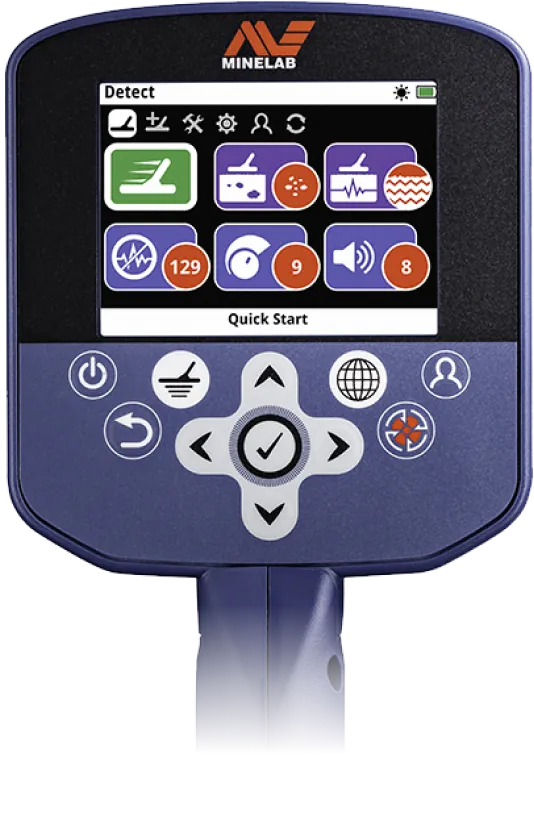

Full-color LCD display
easy interface with simple menus.
Built-in GPS
accurately record and track promising locations.
WM 12 wireless audio
complete freedom of movement without cables.
Weatherproof
ready to detect in rain and damp conditions.
Gold Mode
High Yield for maximum sensitivity, General for everyday use, and Extra Deep for maximum possible depth in gold-rich ground.
Ground Type
Normal for moderate ground, Difficult for tougher soil, and Severe for highly mineralized ground and hot rocks.
Ground Balance (Quick-Trak)
automatic and manual via the Quick-Trak trigger button for an instant reset when the ground changes.
GPS & XChange 2 Mapping
built-in GPS records WayPoints, FindPoints, and GeoHunts, with data transfer to Google Maps via the XChange 2 program.
Technical specifications
| Depth | 4 feet |
|---|---|
| Made In | Australia |
| Warranty | 3 Years |
| Technology | ZVT (Zero Voltage Transmission) — Minelab's exclusive technology |
| Gold Modes | High Yield / General / Extra Deep |
| Ground Types | Normal / Difficult / Severe |
| Ground Balance | Automatic / Manual (Quick-Trak button) |
| Noise Cancel | 256 channels to reduce airborne interference |
| Sensitivity | Adjustable |
| Tone | Adjustable from 1 to 100 |
| Display | Full-color LCD, 320×240 pixels, backlit |
| Wireless Audio | WM 12 wireless module (included), under 10 milliseconds latency |
| Included Headphones | Koss UR30 (100 ohm), wired, 6.3mm |
| Standard Search Coil | Super-D 14×13 inch (GPZ 14) with skid plate, waterproof to 1 meter |
| Positioning System | Built-in GPS, compatible with XChange 2 |
| Weight | Approx. 3.3 kg (7.3 lb) |
| Water Resistance | Coil waterproof to 1 meter / unit is weatherproof and rain-resistant |
| Computer Connectivity | USB, compatible with XChange 2 |
| Detects | Deep, large gold pieces at depths exceeding the GPX series by up to 40% |
What’s in the box
- Main control unit with color display
- Super-D 14×13 inch search coil (GPZ 14), waterproof
- Koss UR30 headphones
- WM 12 wireless audio module
- Rechargeable battery with charger
- Coil skid plate and carry strap
- User manual
Ideal for
Professional prospectors seeking the maximum depth available on the market
A strong fit for professional prospectors seeking the maximum depth available on the market with the Minelab GPZ 7000.
Old goldfields that need advanced technology to find what other detectors have missed
A strong fit for old goldfields that need advanced technology to find what other detectors have missed with the Minelab GPZ 7000.
Highly mineralized ground and hot rocks
A strong fit for highly mineralized ground and hot rocks with the Minelab GPZ 7000.
Anyone who wants to log detecting locations and revisit them via built-in GPS
A strong fit for anyone who wants to log detecting locations and revisit them via built-in gps with the Minelab GPZ 7000.
