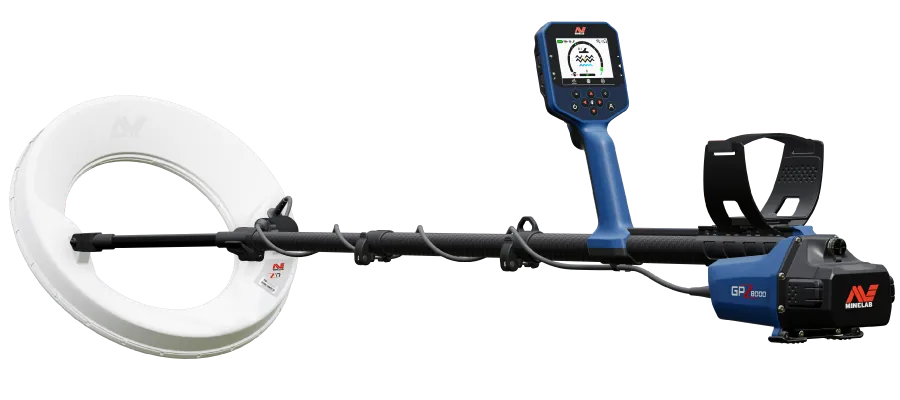

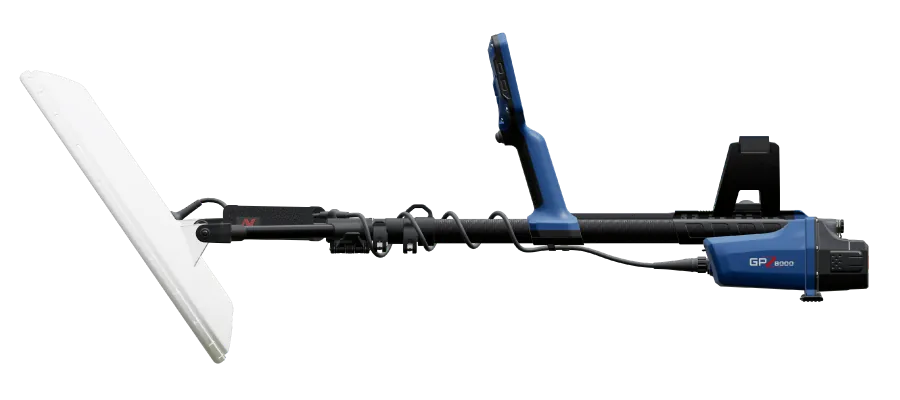

Minelab GPZ 8000
Minelab's newest flagship for 2026 and successor to the GPZ 7000, the GPZ 8000 pairs next-generation GeoZVT ground technology with the multi-layered, stereo-separated Echo Sonic Pro sound system and a three-size Z-Set concentric coil range for maximum depth in the toughest ground. A lightweight chassis, Pro-Swing 125 support harness, and dual rechargeable lithium batteries make it Minelab's most powerful gold detector to date.
Overview
The GPZ 8000 is Minelab's newest flagship, engineered for advanced performance in the toughest ground. Built on GeoZVT technology — the next generation of the ZVT platform — it takes everything Minelab learned from the GPZ 7000 and GPX 6000 to a new level of advanced ground processing.
The three concentric Z-Set ring coils — Z18 for maximum depth in open ground, Z17 for highly conductive, noisy soil, and Z13 for areas dense with vegetation — are each designed to reduce ground noise according to the terrain.
The Echo Sonic Pro sound system delivers true stereo audio processing, with two separate channels reaching each ear in real time rather than blending down to a single dominant channel, giving you complete control over interpreting target and ground signals. The Pro-Swing 125 harness distributes the detector's weight for longer, more comfortable prospecting sessions.
Key features
GeoZVT Technology
Next generation of ZVT with advanced signal processing
3 Z-Set Ring Coils
Z18, Z17, and Z13 for every ground type
Echo Sonic Pro Stereo Sound
Rich, layered audio detail
5 Ground Modes
Normal to Extra Deep for maximum adaptability
Pro-Swing 125 Harness
Greater comfort during long sessions
WM 14 Wireless Audio
Complete freedom of movement
Waterproof
Detector and coil rated to 1 meter
Technical specifications
| Depth | 4 feet |
|---|---|
| Made In | Australia |
| Warranty | 3 Years |
| Technology | GeoZVT — next generation of ZVT technology with advanced signal processing |
| Ground Modes | Normal / Deep / Difficult / Difficult Deep / Extra Deep |
| Ground Balance | Automatic / Manual |
| Sensitivity | Automatic / Auto+ / Manual |
| Interference Cancel | Automatic and manual, for location changes or interference |
| Audio | Echo Sonic Pro stereo (two channels), switchable to traditional audio mode |
| Z-Set Coils | Z18 (18-inch), Z17 (17-inch), Z13 (13-inch) concentric ring coils |
| Harness | Pro-Swing 125 carry harness for weight distribution |
| Weight | Approx. 2.77 kg (6.1 lb) with 18-inch coil |
| Battery | Two rechargeable lithium-ion batteries |
| Wireless Audio | WM 14 wireless module |
| Waterproofing | Control box, coil, and wireless module rated to 1 meter for under 30 minutes |
What’s in the box
- Main control box
- Z18 18-inch concentric ring search coil
- Two rechargeable lithium-ion batteries
- Pro-Swing 125 carry harness
- 3 Hip-Strut lengths with connectors
- Bungee cord and hooks
- Screen protector
- User manual
Ideal for
Professional prospectors who have outgrown the GPZ 7000 and want the latest technology
A strong fit for professional prospectors who have outgrown the gpz 7000 and want the latest technology with the Minelab GPZ 8000.
Working sites already searched with other detectors, to find what they missed
A strong fit for working sites already searched with other detectors, to find what they missed with the Minelab GPZ 8000.
Highly mineralized, conductive ground with heavy electromagnetic interference
A strong fit for highly mineralized, conductive ground with heavy electromagnetic interference with the Minelab GPZ 8000.
Those seeking the maximum depth and control available in today's gold detector market
A strong fit for those seeking the maximum depth and control available in today's gold detector market with the Minelab GPZ 8000.
