Lorenz Deepmax Z2 Standard Detecting Kit
A German-made, non-motion pulse induction system for deep treasure and cache searching, supplied with a 1 m frame coil and 35 cm DD coil for both large and small targets.
Price on request — contact us on WhatsApp
SKU LORENZ-DEEPMAX-Z2
Overview
The Lorenz Deepmax Z2 is a professional pulse induction metal detector developed and built in Germany by Lorenz Detecting Systems. It is designed for deep searching, such as locating buried caches, larger metal objects and archaeological targets, and it works in non-motion mode, so the coil does not need to be swept to keep the signal stable.
The Z2 uses a pulse ground balancing system that can be set as a preset, a two-step automatic balance or manually, together with Lorenz's Pulse Shaping Technology and differential noise cancelling. Its LC display shows a signal bar graph, a conductivity reading from 000 to 099 and ferrous or non-ferrous icons, helping the operator judge what kind of metal is below. A built-in data acquisition function can record survey fields for later mapping on a computer.
The Standard Detecting Kit adds the coils most users need to the basic electronics: a 1 m x 1 m frame coil with carrying straps and bag for maximum depth on larger targets, a 35 cm DD coil for smaller items, and a three-piece telescopic S-pole. Lorenz publishes example depths of roughly 40-50 cm for a 2 cm gold coin with small coils, rising beyond 125 cm with large frame coils, depending on settings.
Lorenz Deepmax Z2 Standard Detecting Kit price in Karachi & Pakistan
The Lorenz Deepmax Z2 Standard Detecting Kit is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
Lorenz Deepmax Z2 Standard Detecting Kit key features
Non-Motion Pulse Induction
Detects in non-motion mode, so targets respond without the need to keep sweeping the coil.
Flexible Ground Balancing
Pulse ground balancing can be preset, two-step automatic or fully manual.
Metal Identification
A 000-099 conductivity reading and ferrous/non-ferrous icons help judge the target before digging.
Frame and DD Coils Included
The kit pairs a 1 m x 1 m frame coil for deep, large targets with a 35 cm DD coil for smaller ones.
Built-In Data Logging
Survey fields can be recorded and turned into colour maps with the optional Lorenz Data Logger set.
Made in Germany
Electronics are developed, hand-built and tested by Lorenz in Germany.
Technical specifications
| Technology | Pulse Induction, non-motion, Pulse GBS (Ground Balancing System) with Pulse Shaping Technology |
|---|---|
| Pulse Rate | Approx. 1270 / 600 pulses per second (small / large coils) |
| Ground Balance | Preset, two-step automatic or manual |
| Coils in Kit | 1 m x 1 m frame coil + 35 cm DD coil |
| Optional Coils | 26 cm and 35 cm single/DD, 44 cm single, universal cable coils (4 m / 8 m / 12 m perimeter), 1.5 m x 1.5 m and 3 m x 3 m frames, differential coils |
| Depth (manufacturer example) | 2 cm gold coin: approx. 40-50 cm with small coils, up to 125 cm+ with large frame coils |
| Display | LC display with bar graph, conductivity 000-099, ferrous/non-ferrous icons, battery and GPS indicators |
| Battery | Built-in rechargeable NiMH 12 V 2.4 Ah |
| Run Time | Approx. 3 to 8 hours depending on temperature, coil and settings |
| Weight | Control box approx. 1,380 g; coils approx. 500-900 g each |
| Operating Temperature | -5 to +50 °C |
| Data Logging | Built-in multi-channel; up to 99 fields, 100 m max track length, 12 samples per second, 8 hours max acquisition |
| Warranty | 2 years within the EU, 1 year outside the EU (batteries excluded) |
| Made In | Germany |
| Manufacturer | Lorenz Detecting Systems GmbH & Co. KG, Hannover |

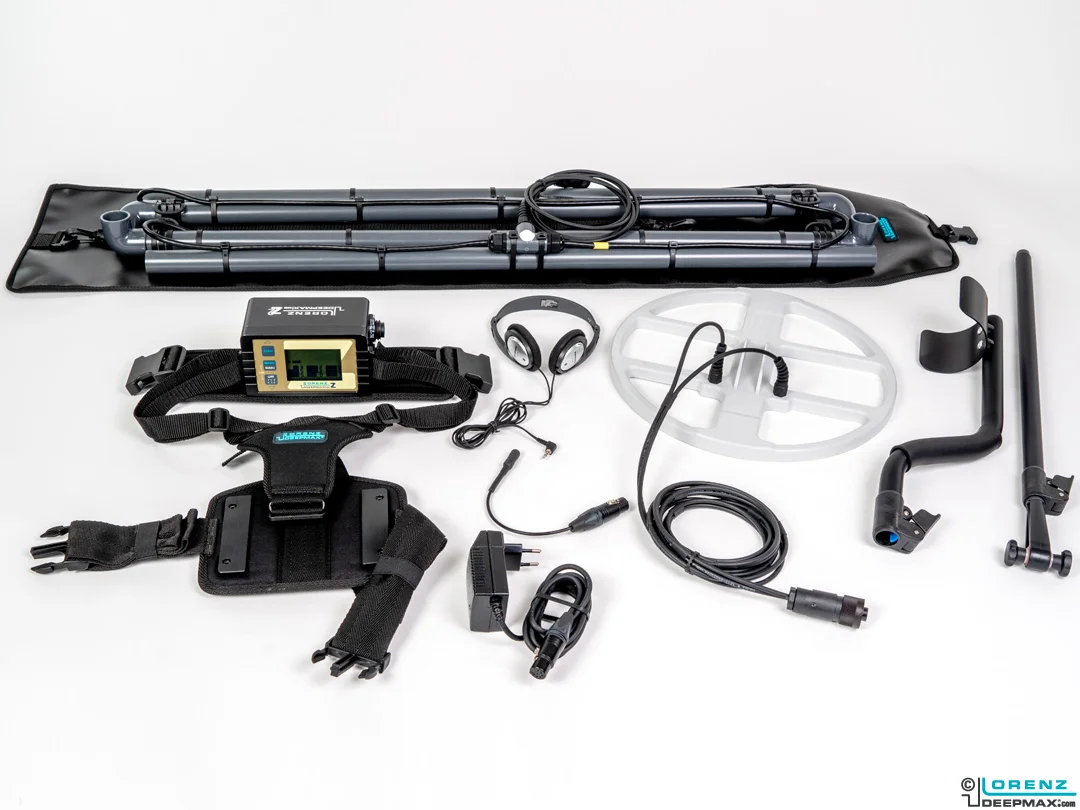

What’s in the box
- Lorenz Deepmax Z2 electronics control box
- Adjustable shoulder and belt strap
- Fast charger (100-240 VAC)
- Stereo headphones with adapter cable
- English instruction manual
- 1 m x 1 m frame coil with carrying straps
- Carrying bag for frame coil
- 35 cm DD coil
- Three-piece telescopic S-pole
Ideal for
Deep Treasure Searches
Locating buried caches and larger metal objects at depth with the frame coil.
Professional Survey Teams
Teams that need logged data and maps of a search area.
Archaeology and Relics
Careful site work where metal identification helps decide what to excavate.
