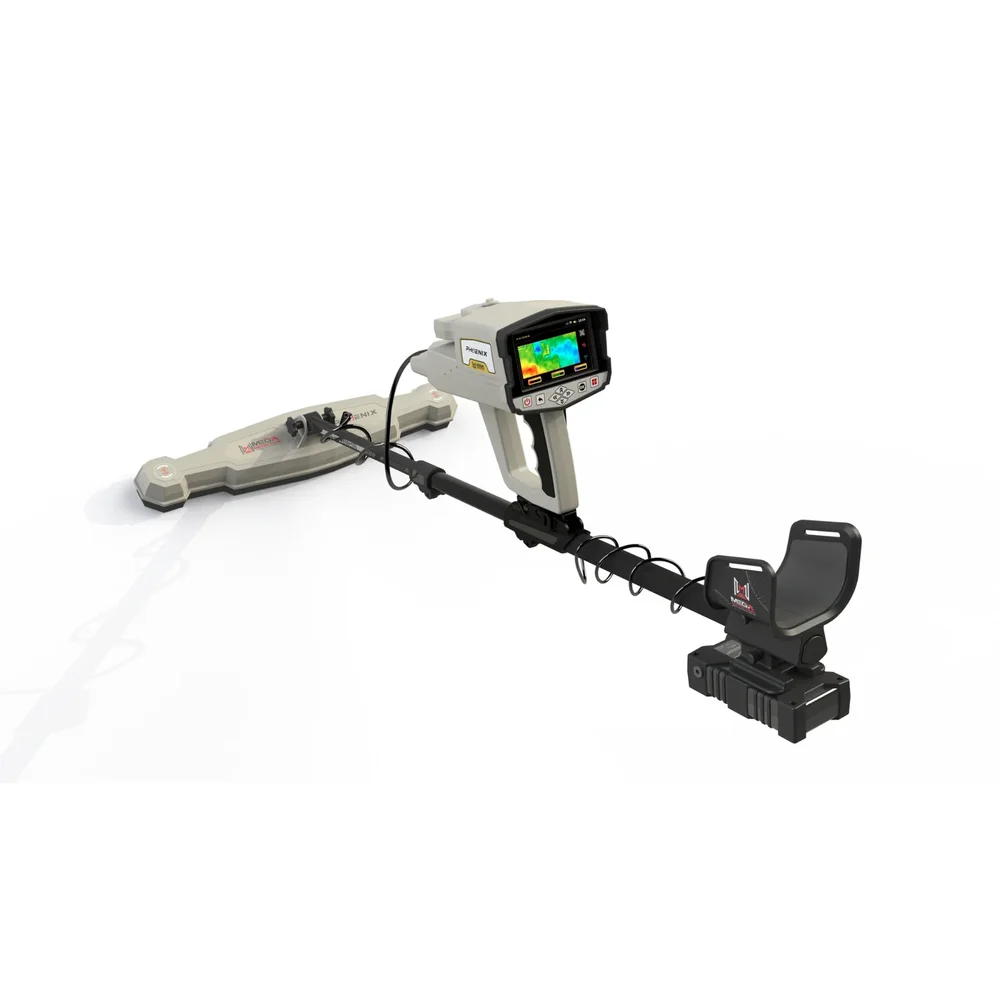

Mega Detection Phoenix
A dedicated 3D ground scanner from Mega Detection that images buried metal and empty cavities, with live stream and pin pointer modes to confirm the target before digging.
Price on request — contact us on WhatsApp
SKU MG/PH/101-225
Overview
The Phoenix is Mega Detection's focused ground imaging system. Rather than relying on long-range signals, it works by scanning the ground directly with the Multi Ground Scanner probe and turning the readings into a picture. This makes it a good choice for buyers who already know roughly where a target might be, such as an old house, a grave site or a suspected tunnel, and want to see what is underneath before they start excavating.
Three systems are built in: 3D Ground Scan, Live Stream and Pin Pointer. Scans can be viewed as a 3D model through the Multi Visual Analyzer app on an Android tablet or phone, where colours separate normal ground from cavities and metals. Live Stream shows ferrous, non-ferrous and cavity signals in real time as you walk, while the Pin Pointer uses a bar graph to mark the exact spot. The Vertical High Signal Transceiver adds colour-changing LEDs for quick feedback.
The main unit carries a 5-inch high-resolution TFT screen, a 1.4 GHz 64-bit ARM processor and 32 GB of storage for saving and reopening scan files. Power comes from a removable 21000 mAh lithium-ion battery with a power-saving mode, and the menu supports 12 languages including Urdu. The manufacturer describes it as able to find treasures and burials at great depth but does not publish a specific depth figure.
Mega Detection Phoenix price in Karachi & Pakistan
The Mega Detection Phoenix is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
Mega Detection Phoenix key features
3D ground scan
Builds a colour 3D view of the scanned area showing metals and cavities through the Multi Visual Analyzer app.
Live Stream mode
Shows ferrous, non-ferrous and cavity signals in real time while walking over the ground.
Pin Pointer system
Bar-graph pinpointing that helps mark the exact target position and tell metal from a void.
Multi Ground Scanner probe
M.G.S.60 probe designed to cover a larger surface per pass.
V.S.T signal unit
Vertical High Signal Transceiver with colour-changing LEDs for instant target feedback.
Scan file memory
32 GB storage to save, reopen and delete previous scans.
Technical specifications
| Technology | 3D ground scanning / imaging |
|---|---|
| Search Systems | 3D Ground Scan, Live Stream, Pin Pointer |
| Probe | Multi Ground Scanner (M.G.S.60) and Vertical High Signal Transceiver (V.S.T) |
| Display | 5-inch high-resolution TFT LCD, 1024 x 860, 16 million colours |
| Processor | ARM 64-bit, 1.4 GHz |
| Storage | 32 GB (SD card) |
| Battery | Removable lithium-ion, 21000 mAh |
| Connectivity | Wi-Fi 2.4 GHz; 3.5 mm headphone jack |
| Operating Temperature | 0°C to 40°C |
| Languages | German, English, French, Spanish, Russian, Italian, Arabic, Hebrew, Persian, Turkish, Urdu, Chinese |
| Package Dimensions / Weight | 68 x 51 x 28 cm / 17 kg |
| Manufacturer | Mega Detection (Mega Locators), Germany |
What’s in the box
- System box (main unit)
- Multi Ground Scanner (M.G.S.60)
- Vertical High Signal Transceiver (V.S.T)
- M.G.S connector
- Armrest and shafts
- Lithium-ion battery
- Headphones
- Accessories box (screws, nuts, battery charger, cables)
- Android tablet (optional)
Ideal for
Cavity and tomb search
Seeing voids, graves and chambers as coloured shapes before excavation.
Confirming a known spot
Checking a suspected site in detail rather than scanning huge areas.
Buried metal objects
Separating metal targets from ordinary ground in 3D.
