OKM eXp 5500 Professional
A German-made 3D ground scanner and VLF detector using OKM's PentaSense system, built for locating buried treasure, cavities, tunnels and militaria to a rated 25 m.
Price on request — contact us on WhatsApp
SKU OKM-EXP-5500-PROFESSIONAL
Overview
The eXp 5500 Professional is OKM's high-end multi-technology detector, designed for people who want deep imaging and everyday metal detection from the same machine. Its PentaSense system lets the Super Sensor run with one, three or five sensors at once using add-on Enhancers, so the scan width and detail can be matched to the job. An LED Orbit on the sensor shows signals in real time while you work.
Three operating modes cover most field work: 3D Ground Scan, which OKM rates down to 25 m, a Magnetometer for quick ferrous checks, and multi-frequency VLF metal detection with Target-ID zones and discrimination through the 14 x 10 inch PentaCoil. That means the same kit can image a buried chest or void and then search the surface for coins, rings and relics.
The control unit has a bright 8.4-inch IPS touchscreen, a replaceable lithium battery giving around seven hours of use, and USB-C for charging and data transfer. Results can be studied in Visualizer 3D Studio Professional Edition on the supplied Windows notebook. For Pakistani treasure hunters and survey teams, it is a strong all-round professional option, made in Germany with a two-year guarantee.
OKM eXp 5500 Professional price in Karachi & Pakistan
The OKM eXp 5500 Professional is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM eXp 5500 Professional key features
PentaSense System
The Super Sensor can run 1, 3 or 5 sensors at the same time using Enhancers.
3D Ground Scan
Graphical ground scans rated by OKM down to 25 m for chests, voids and tunnels.
14x10" VLF PentaCoil
Multi-frequency VLF with Target-ID zones and discrimination for coins, jewellery and relics.
8.4" Touchscreen
Large IPS display with multilingual menus for clear on-site reading.
LED Orbit
Lights around the Super Sensor give instant visual target signals.
Replaceable Battery
User-replaceable Li-ion pack gives about seven hours of operation.
Technical specifications
| Technology | 3D ground scan (SCMI-15-D Super Sensor, PentaSense) + multi-frequency VLF |
|---|---|
| Operating Modes | 3D Ground Scan, Magnetometer, VLF Metal Detection |
| Depth (manufacturer rating) | Down to 25 m (82 ft) |
| Display | 8.4" IPS-LCD touchscreen, 1024 x 768 pixels |
| Processor | ARM Cortex 4x-A53 @ 1.6 GHz |
| Battery | Replaceable Li-ion, 7.27 V, 10.2 Ah, 74.154 Wh |
| Operating Time | Approx. 7 hours (25 °C, medium brightness) |
| Charging Time | 3 hours |
| Control Unit Weight | 1.7 kg |
| Control Unit Dimensions | 75 x 210 x 230 mm |
| Super Sensor | 1010 x 200 x 110 mm, 0.74 kg |
| VLF PentaCoil | 14 x 10" (345 x 265 x 70 mm), 0.84 kg |
| Memory | 8 GB eMMC, 2 GB RAM |
| Protection Class | IP40 (not waterproof) |
| Operating Temperature | -10 °C to 50 °C |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |

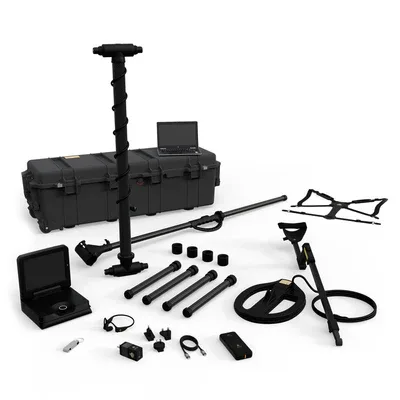

What’s in the box
- 1x Control Unit
- 1x Waterproof and shock-resistant Protector Case
- 1x Super Sensor with LED Orbit
- 1x Bluetooth Headphones with charging cable
- 1x USB Flash Drive with Visualizer 3D Studio Professional Edition
- 1x Pre-configured Windows Notebook
- 1x 14x10" VLF PentaCoil
- 1x Telescopic Rod
- 1x Carrying strap
- 1x Charger with USB-C cable
- 1x Power Pack PP20V3A01
- 4x Extenders
- 1x PentaSense Rod
- 4x Protective caps
- 1x Backstrap
Ideal for
Serious Treasure Hunters
Deep 3D imaging plus a VLF coil for surface finds in one kit.
Cavity and Tunnel Search
Shows underground voids and chambers as 3D graphics.
Archaeology and Militaria
Helps locate buried structures, artefacts and old military objects.
Survey Teams
Configurable sensor count suits different site sizes and goals.
