OKM EXP 6000 PRO+
A wireless 3D ground scanner and metal detector built for the highest professional demands.
Overview
The OKM EXP 6000 PRO+ is a fully wireless 3D ground scanning system engineered in Altenburg, Germany, for treasure hunters, archaeologists, geologists, and prospectors who need to see beneath the surface before they dig. Its interchangeable carbon-fiber probes connect via magnetic mounts and communicate with the touchscreen control unit over WiFi, eliminating trailing cables in the field.
Six operating modes cover 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, and Live Scan, letting a single system handle cavity detection, tunnel mapping, natural gold prospecting, and pinpointing without swapping equipment. Scan data appears on the 6.5-inch touchscreen in real time and is later reconstructed into rotatable, color-coded 2D and 3D models.
Included is a pre-configured notebook running OKM Visualizer 3D Studio Professional Edition, which reconstructs saved scans into detailed 3D models for determining the position, size, and depth of buried targets after the field session. The system's telescopic probe extends to 124 cm and, combined with the SCMI-15-D dual/hexa geophysical phase reader, is rated for detection depths down to 25 m under favorable ground conditions.
Key features
Wireless Telescopic Probe
extends to 124 cm and connects over WiFi, removing the need for trailing sensor cables
Six Operation Modes
covers 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, and Live Scan in one device
Carbon-Fiber Probe Set
includes the Telescopic Probe, Super Sensor, Live-Stream Sensor, and Tunnel Sensor, each rigid yet lightweight for extended field use
6.5-inch Touchscreen Control Unit
displays live scan data at 1024 x 768 resolution and runs a multilingual interface translated into 12+ languages
Visualizer 3D Studio Professional Edition
reconstructs saved scans into rotatable, color-coded 3D models on the included notebook for detailed post-scan analysis
Removable GPS Receiver
geo-tags scan locations directly from the telescopic rod handle for accurate return-to-site mapping
Video Glasses Compatibility
streams live scan feed to compatible smart eyewear for hands-free field operation
Technical specifications
| Depth | 3D Scanner |
|---|---|
| Made In | Germany |
| Warranty | 2 Years |
| Operating Principle | SCMI-15-D Dual/Hexa Geophysical Phase Reader with 3D ground scanning |
| Detection Range | Up to 30 m wireless operating distance (line of sight) between probe and control unit |
| 3D Imaging Software | OKM Visualizer 3D Studio Professional Edition (included on pre-configured notebook) |
| Power Source | Rechargeable battery, 11.8-19 VDC, 50W max (control unit) |
| Weight | Control unit ~2.34 kg; telescopic rod ~1.76 kg; probes 0.76-1.04 kg each |
| Manufacturer | OKM |
| Control Unit Display | 6.5" touchscreen, 1024 x 768 pixels |
| Operating Modes | 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, Live Scan |
| Operating Time | Approx. 4 hours (control unit), approx. 5 hours (telescopic rod) at full charge, 25°C |
| Operating Temperature | -10°C to 50°C |
| Processor / Memory | QuadCore AMD @ 2GHz, 4GB RAM, 8GB microSD storage |
| Connectivity | WiFi 802.11n wireless probe connection |
| Probe Material | Carbon fiber, magnetic quick-mount connectors |

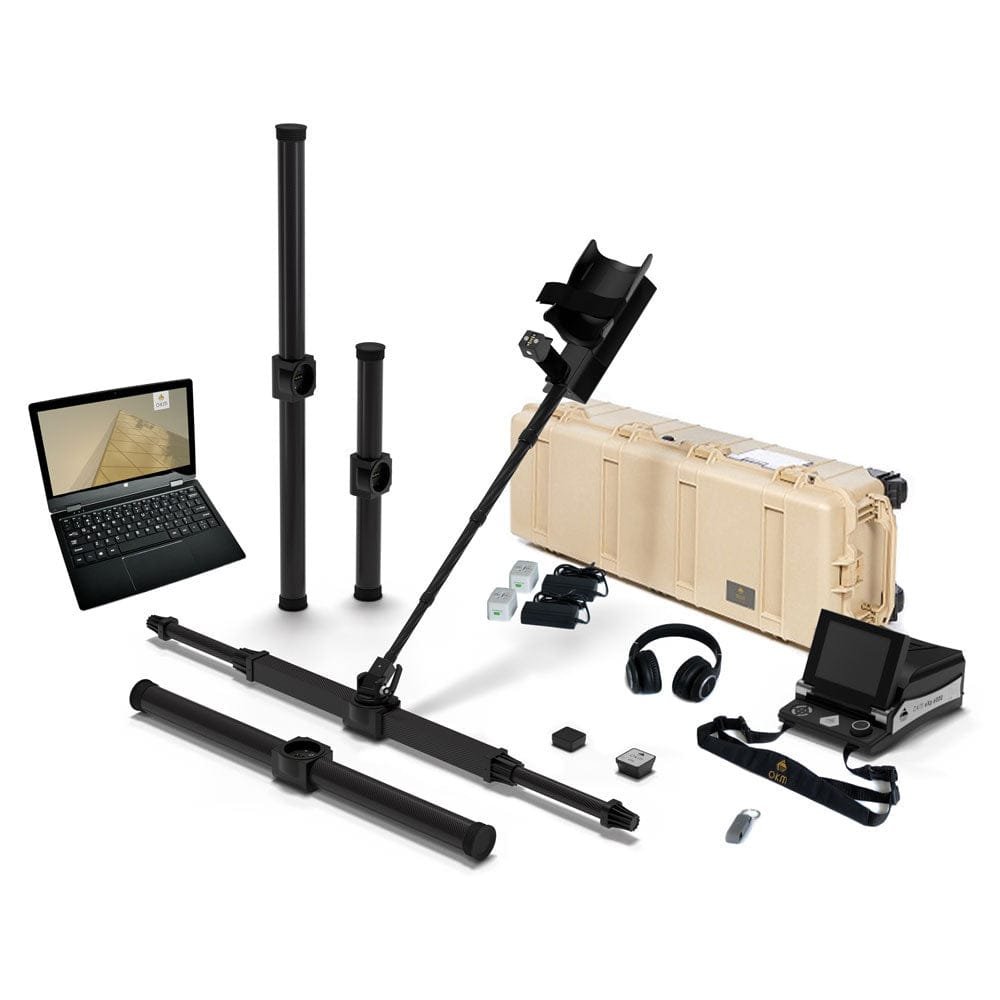

What’s in the box
- 1x Control Unit
- 1x Wireless Telescopic Probe
- 1x Wireless Super Sensor
- 1x Wireless Live-Stream Sensor
- 1x Wireless Tunnel Sensor
- 1x Telescopic Rod with GPS Receiver Cap
- 1x Pre-configured Notebook
- 1x OKM Visualizer 3D Studio Professional Edition (software)
- 1x Bluetooth Headphones with charging cable
- 1x Charger with cable
- 1x Travel Adapter Set
- 1x Waterproof Protector Case
- 1x Quick Start Guide
Ideal for
Archaeological Surveys
A strong fit for archaeological surveys with the OKM EXP 6000 PRO+.
Cavity & Tunnel Detection
A strong fit for cavity and tunnel detection with the OKM EXP 6000 PRO+.
Natural Gold Prospecting
A strong fit for natural gold prospecting with the OKM EXP 6000 PRO+.
Professional Treasure Hunting
A strong fit for professional treasure hunting with the OKM EXP 6000 PRO+.
