OKM eXp 7000 Professional Plus
OKM's flagship German 3D ground scanner, pairing a multi-sensor Super Sensor with a VLF coil and eight operating modes for deep treasure, cavity, tunnel and natural gold searches.
Price on request — contact us on WhatsApp
SKU OKM-EXP-7000-PROFESSIONAL-PLUS
Overview
The eXp 7000 Professional Plus sits at the very top of the OKM range. It is built around a large control unit with an 8.4-inch IPS touchscreen and a Super Sensor that can work with up to seven sensor pairs at the same time through the SuperSense X7 system. Four interchangeable Extenders let the operator adapt the sensor to rocky, forested or open ground, and an LED Orbit on the sensor gives instant visual signals while scanning.
What makes this model stand out is the number of jobs it can do in one kit. There are eight modes, including 3D Ground Scan rated by OKM down to 25 m, 3D VLF Scan, Mineral Scan, Tunnel Scan, Live Scan, Magnetometer, Pinpointer and multi-frequency VLF metal detection with Target-ID zones. The Mineral Scan shows a percentage-based colour map, which is useful for prospectors studying natural gold-bearing ground and veins.
For serious teams in Pakistan looking for buried treasure chests, voids, tunnels or old artefacts, the eXp 7000 gives both a deep imaging view and a shallow VLF coil for coins and jewellery. Scans can be analysed on site or moved to the included Windows notebook and studied in Visualizer 3D Studio Professional Edition. The whole system ships in a waterproof, shock-resistant case and is made in Germany with a two-year guarantee.
OKM eXp 7000 Professional Plus price in Karachi & Pakistan
The OKM eXp 7000 Professional Plus is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM eXp 7000 Professional Plus key features
SuperSense System X7
The Super Sensor can run up to seven sensor pairs at once for wider, more detailed 3D ground scans.
Eight Operating Modes
3D Ground Scan, 3D VLF Scan, Mineral Scan, Tunnel Scan, Live Scan, Magnetometer, Pinpointer and VLF metal detection in one kit.
Mineral Scan
Shows mineral distribution as a percentage-based colour map to help prospectors read gold-bearing ground.
Multi-Frequency VLF Coil X7
A 13 x 10 inch VLF coil with Target-ID zones handles shallow coins, jewellery and relics.
Interchangeable Extenders
Four Extenders let the sensor be adapted to different terrain conditions.
LED Orbit Signals
Lights on the Super Sensor give real-time target feedback while you walk.
Professional Software Included
Visualizer 3D Studio Professional Edition and a pre-configured Windows notebook are supplied for deeper analysis.
Technical specifications
| Technology | Multi-sensor 3D ground scan (GST/EMSR, SCMI-15-D) + multi-frequency VLF |
|---|---|
| Operating Modes | 3D Ground Scan, 3D VLF Scan, Mineral Scan, Tunnel Scan, Live Scan, Magnetometer, Pinpointer, VLF Metal Detection |
| Depth (manufacturer rating) | 3D Ground Scan down to 25 m (82 ft); VLF down to 40 cm |
| Display | 8.4" IPS-LCD touchscreen, 1024 x 768 pixels |
| Battery | Replaceable Li-ion, 7.27 V, 10.2 Ah, 74.154 Wh |
| Operating Time | Approx. 7 hours (25 °C, medium brightness) |
| Charging Time | 3 hours |
| Control Unit Weight | 1.86 kg |
| Control Unit Dimensions | 90 x 215 x 250 mm |
| Super Sensor | 1010 x 210 x 110 mm, 0.94 kg, 180 cm cable |
| VLF Coil X7 | 325 x 255 x 70 mm, 0.7 kg |
| Memory | 8 GB eMMC storage, 2 GB RAM |
| Connectivity | USB-C, Bluetooth headphones, GPS capability |
| Operating Temperature | -10 °C to 50 °C |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |

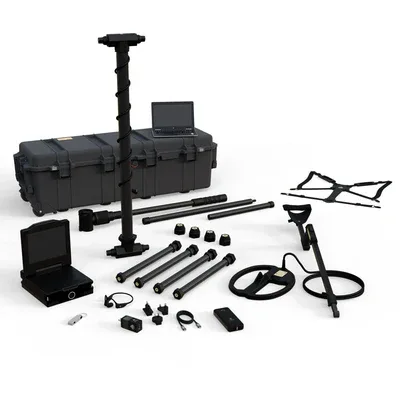

What’s in the box
- 1x Control Unit
- 1x Super Sensor with LED Orbit
- 4x Extender with protective caps
- 1x VLF Coil X7 (13x10")
- 1x Detachable Carrying Rod
- 1x Telescopic Rod
- 1x Bluetooth Headphones with charging cable
- 1x USB-C Charger and cable
- 1x Power Pack PP20V3A01
- 1x Carrying strap and backstrap
- 1x Pre-configured Windows Notebook
- 1x USB Flash Drive with Visualizer 3D Studio Professional Edition
- 1x Waterproof and shock-resistant Protector Case
Ideal for
Professional Treasure Teams
Groups who need deep 3D imaging plus a shallow VLF coil in one system.
Natural Gold Prospectors
Mineral Scan and Tunnel Scan help study gold-bearing ground and old workings.
Cavity and Tunnel Search
Built to show voids, chambers and tunnels in 3D before any digging starts.
Archaeology Projects
Non-invasive survey of sites for buried structures and artefacts.
