OKM Fusion Light
An entry-level German 3D ground scanner controlled from an Android smartphone app, built to find buried chests, cavities and ferrous metals rated down to 8 m.
Price on request — contact us on WhatsApp
SKU OKM-FUSION-LIGHT
Overview
The Fusion Light is OKM's way into 3D ground scanning for newcomers. The control unit is a slim 80 cm rod weighing around 700 g, and instead of a built-in screen it is operated from an Android smartphone running the OKM app. The phone is included in the box with the app already installed, so a new user can start scanning without extra setup.
Two modes are available. 3D Ground Scan records a field in lines and shows any anomalies as a 3D image, with OKM rating this mode down to 8 m. The Magnetometer mode gives a quick indication of ferrous metals. The battery runs for about 12 hours and recharges in around three hours, and data travels over Bluetooth 5.1. Scans can be reviewed on the phone straight away in the field.
For more detailed study, the kit includes a Windows notebook loaded with Visualizer 3D Studio Standard Edition. This makes the Fusion Light a sensible choice for Pakistani buyers who want genuine German 3D imaging for treasure chests, cavities, tunnels and buried metal at a lower entry level. It is not waterproof, carries a two-year guarantee and is made in Germany.
OKM Fusion Light price in Karachi & Pakistan
The OKM Fusion Light is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM Fusion Light key features
Smartphone App Control
Operated through the OKM app on the supplied Android smartphone.
3D Ground Scan
Shows buried objects and voids as 3D graphics, rated by OKM to 8 m.
Magnetometer Mode
Quick audio and visual check for ferrous metals.
Lightweight Rod Design
About 700 g and 80 cm long for easy carrying.
Long Battery Life
Around 12 hours of operation from one charge.
PC Software Included
Windows notebook with Visualizer 3D Studio Standard Edition for deeper analysis.
Technical specifications
| Technology | GST/EMSR, SCMI-15-D coil |
|---|---|
| Operating Modes | 3D Ground Scan, Magnetometer |
| Depth (manufacturer rating) | Down to 8 m (26 ft) |
| Display | Android smartphone with OKM app (included) |
| Dimensions | 800 x 65 x 65 mm |
| Weight | Approx. 700 g |
| Battery | Li-ion, 2600 mAh |
| Operating Time | Approx. 12 hours |
| Charging Time | Approx. 3 hours |
| Data Transmission | Bluetooth 5.1, approx. 10 m range |
| Waterproof | No (IP40) |
| Operating Temperature | -10 °C to 60 °C |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |

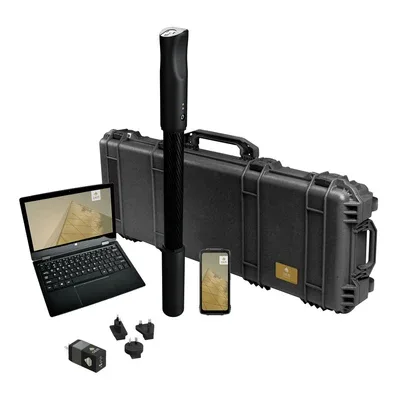

What’s in the box
- 1x Control Unit
- 1x Android Smartphone with pre-installed OKM App
- 1x Windows Notebook with Visualizer 3D Studio Standard Edition
- 1x USB Flash Drive with software
- 1x Charger with cable
- 1x Travel Adapter Set
- 1x Waterproof and shock-resistant Protector Case
- 1x Quick Start Guide
Ideal for
Beginners in 3D Scanning
Simple app control and an easy two-mode layout.
Buried Chest Search
Locates larger buried metal objects in 3D.
Cavity Detection
Highlights tunnels and voids under the ground.
