OKM Fusion Professional Plus
A slim, all-in-one German 3D ground scanner with built-in search coil, offering 3D scans, live images and magnetometer sound for targets rated down to 25 m.
Price on request — contact us on WhatsApp
SKU OKM-FUSION-PROFESSIONAL-PLUS
Overview
The Fusion Professional Plus is the most capable member of OKM's Fusion family. Everything is built into one slim, height-adjustable control unit of about 1 kg, with the sensor integrated rather than attached as a separate probe. This makes it easy to carry over long distances and comfortable to use on rough or hilly ground where a large frame would be awkward.
It offers three working methods. 3D Ground Scan records measurements over a field and turns them into a 3D picture; OKM rates this mode down to 25 m. Live Scan shows an instant image while walking, with the probe held either vertically or horizontally. Live Sound uses the magnetometer to give audio feedback on magnetic changes, which helps narrow down ferrous targets. Data is sent over Bluetooth 5.1.
The Plus version comes with Visualizer 3D Studio Professional Edition, a pre-configured Windows notebook and a notebook mount, so scans can be checked in the field. It suits treasure hunters searching for buried chests, metal caches, voids and tunnels, as well as archaeology work. Battery life is about 12 hours, and the unit is made in Germany with a two-year guarantee.
OKM Fusion Professional Plus price in Karachi & Pakistan
The OKM Fusion Professional Plus is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM Fusion Professional Plus key features
Integrated Sensor Design
All electronics and the SCMI-15-D / SRIS sensor technology sit in one slim, roughly 1 kg unit.
3D Ground Scan
Records ground measurements and turns them into 3D graphics, rated by OKM down to 25 m.
Live Scan, Two Orientations
Gives instant images with the probe held vertically or horizontally.
Live Sound Magnetometer
Audio feedback on magnetic field changes for quick ferrous checks.
12-Hour Battery
Rechargeable battery gives roughly a full day of fieldwork.
Professional Software
Visualizer 3D Studio Professional Edition and a Windows notebook are included.
Technical specifications
| Technology | GST/EMSR, SCMI-15-D / SRIS-18K coils |
|---|---|
| Operating Modes | 3D Ground Scan, Live Scan (vertical/horizontal), Live Sound (Magnetometer) |
| Depth (manufacturer rating) | Up to 25 m (82 ft) |
| Dimensions | 950 mm height x 65/80 mm (W x D) |
| Weight | Approx. 1 kg |
| Operating Time | Approx. 12 hours (full charge, 25 °C) |
| Sample Rate | 1024 values/second, 16-bit resolution |
| Data Transmission | Bluetooth 5.1, approx. 10 m range |
| Protection Class | IP40 |
| Operating Temperature | -10 °C to 60 °C |
| Audio | Bluetooth headphones |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |

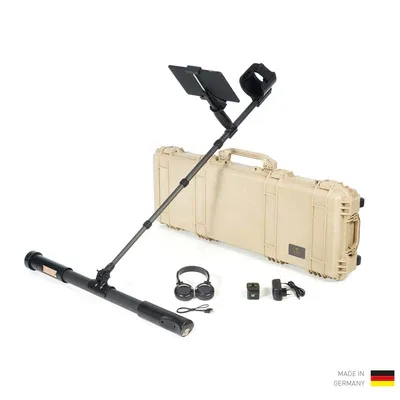

What’s in the box
- Control Unit
- Telescopic Rod
- Pre-configured Windows Notebook
- Notebook Mount
- USB Flash Drive with Visualizer 3D Studio Professional Edition
- Bluetooth Headphones with charging cable
- Charger with cable
- Travel Adapter Set
- Waterproof and shock-resistant Protector Case
- Quick Start Guide
Ideal for
Mountain and Rough Terrain
Light, single-piece design is easy to carry on difficult ground.
Treasure and Cache Search
3D scans help locate buried chests and metal caches.
Cavity Detection
Shows voids and tunnels as distinct anomalies in 3D.
