OKM Fusion Ultra Light
OKM's most affordable 3D ground scanner, a 700 g German-made rod controlled by your own Android phone, for finding buried objects and cavities rated down to 8 m.
Price on request — contact us on WhatsApp
SKU OKM-FUSION-ULTRA-LIGHT
Overview

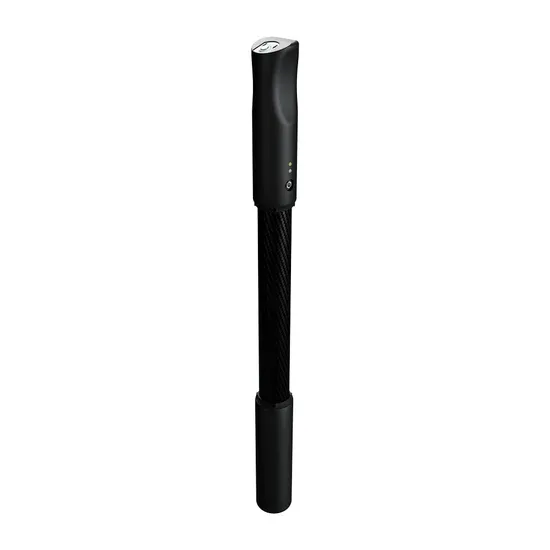

The Fusion Ultra Light uses the same compact control unit as the Fusion Light: an 80 cm rod of about 700 g with the sensor built in. The difference is in the package. Rather than shipping a smartphone and laptop, OKM supplies a download code for the Android app, so the buyer uses their own phone (Android 7.1 or newer) as the screen. This keeps the starting cost of the system lower.
It works in two modes. 3D Ground Scan records the ground in parallel lines and builds a 3D picture of anomalies such as metal objects and voids; OKM rates this mode to 8 m. Magnetometer mode is used to check for ferrous metals. The lithium battery lasts around 12 hours, takes about three hours to charge, and data is sent to the phone over Bluetooth 5.1.
A USB drive with Visualizer 3D Studio Standard Edition is included for detailed analysis on a Windows 10 computer. For Pakistani beginners and hobbyists who want to try genuine German 3D ground scanning for buried treasure, militaria or cavities, the Ultra Light is the lowest-cost entry into the OKM range, with a two-year guarantee. Everything packs into a protective tube, so the system is easy to carry and store between trips.
OKM Fusion Ultra Light price in Karachi & Pakistan
The OKM Fusion Ultra Light is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM Fusion Ultra Light key features
Use Your Own Phone
Controlled through the OKM Android app via a supplied download code.
3D Ground Scan
Builds a 3D view of buried anomalies, rated by OKM to 8 m.
Magnetometer
Checks for ferrous metal targets.
Ultra-Light Build
Around 700 g in a slim 80 cm rod.
12-Hour Battery
Long run time on the internal 2600 mAh lithium battery.
Visualizer 3D Studio
Standard Edition software included on USB for PC analysis.
Technical specifications
| Technology | 3D ground scan with integrated sensor |
|---|---|
| Operating Modes | 3D Ground Scan, Magnetometer |
| Depth (manufacturer rating) | Down to 8 m (26 ft) |
| Display | User's Android smartphone (Android 7.1+) with OKM app |
| Dimensions | 800 x 65 x 65 mm |
| Weight | Approx. 700 g |
| Battery | Li-ion, 2600 mAh |
| Operating Time | Approx. 12 hours |
| Charging Time | Approx. 3 hours |
| Data Transmission | Bluetooth 5.1, approx. 10 m range |
| Protection Class | IP40 |
| Operating Temperature | -10 °C to 60 °C |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |
What’s in the box
- Control Unit
- OKM App download code (Android)
- USB flash drive with Visualizer 3D Studio Standard Edition
- Charger with cable
- Travel adapter set
- Quick Start Guide
- Protector tube
Ideal for
First-Time Buyers
Lowest-cost way into OKM 3D ground scanning.
Treasure and Militaria
Helps locate buried metal objects and caches.
Cavity Search
Shows voids and tunnels as anomalies in 3D.
