OKM Gepard GPR 3D
A German ground penetrating radar with unshielded telescopic antennas and a 60-300 MHz range, built to map pipes, cavities, tunnels and foundations rated to 40 m.
Price on request — contact us on WhatsApp
SKU GPR-D01
Overview
The Gepard GPR 3D is OKM's ground penetrating radar. Unlike magnetic or electromagnetic ground scanners, it sends radio pulses into the ground through separate transmitting and receiving antennas and reads the echoes from layers and buried objects. The triangular, unshielded antennas are mounted on adjustable telescopic shafts, and the system works across a 60 to 300 MHz frequency range. Its height can be adjusted to suit the operator.
Results can be shown as a 2D radargram, giving a vertical slice of the ground, or recorded as a 3D Ground Scan for a full picture of the area. Measurements are taken at nine complete cycles per second and displayed live on the included Android tablet. OKM rates the system for underground structures down to 40 m, depending on soil conditions.
This makes the Gepard well suited to locating pipelines, conduits, cavities, tunnels, bunkers and old foundations, which is useful for engineering, construction and archaeology as well as treasure searching. Power comes from batteries in the telescopic shafts giving about four hours of use. Data can be analysed in Visualizer 3D Studio Professional. It is made in Germany with a two-year guarantee.
OKM Gepard GPR 3D price in Karachi & Pakistan
The OKM Gepard GPR 3D is priced on request because import costs change often — message us on WhatsApp for today's price in Karachi. Every unit is 100% original with manufacturer warranty. Pick it up from our Bahria Town Karachi office or get home delivery anywhere in Karachi and Pakistan.
OKM Gepard GPR 3D key features
True Ground Penetrating Radar
Radar pulses at 60-300 MHz map layers and buried structures.
2D and 3D Modes
Live 2D radargrams plus full 3D Ground Scan recordings.
Telescopic Unshielded Antennas
Adjustable triangular antennas for flexible survey setups.
Android Tablet Display
Colour touchscreen tablet shows radar images in real time.
Professional Software
Visualizer 3D Studio Professional included for analysis.
GPS Support
Supports GPS integration for mapping scan positions.
Technical specifications
| Technology | Ground penetrating radar, omnidirectional unshielded transmission |
|---|---|
| Frequency Range | 60-300 MHz |
| Operating Modes | 3D Ground Scan, 2D Radargram |
| Depth (manufacturer rating) | Up to 40 m (132 ft) |
| Display | Android tablet with colour touchscreen |
| Sampling | 9 complete cycle measurements per second |
| Battery | 7.26 V / 2600 mAh (in telescopic shaft) |
| Operating Time | Approx. 4 hours |
| Control Unit | 450 x 260 x 130 mm, approx. 1.6 kg |
| Antenna | 1010 x 330 x 50 mm, 1.5 kg |
| Protection Class | IP20 |
| Operating Temperature | -20 °C to 55 °C |
| Made In | Germany |
| Warranty | 2 years |
| Manufacturer | OKM GmbH, Germany |

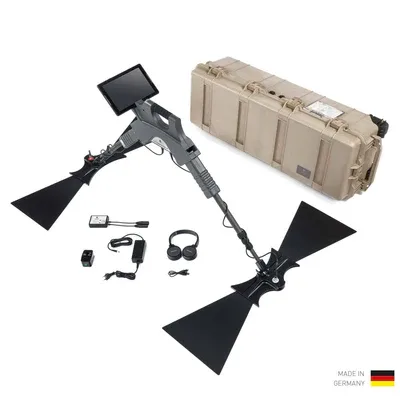

What’s in the box
- 1x Control Unit
- 1x Android Tablet
- 2x Telescopic Shaft
- 1x Sending Antenna
- 1x Receiving Antenna
- 1x USB Flash Drive with Visualizer 3D Studio Professional
- 1x Bluetooth Headphones
- 1x Charger
- 1x Travel Adapter Set
- 1x Protector Case
- 1x Quick Start Guide
Ideal for
Engineering and Utilities
Maps pipes, conduits and foundations before excavation.
Cavity and Tunnel Survey
Shows voids, bunkers and tunnels in radar images.
Archaeology Teams
Non-invasive imaging of buried walls and structures.
