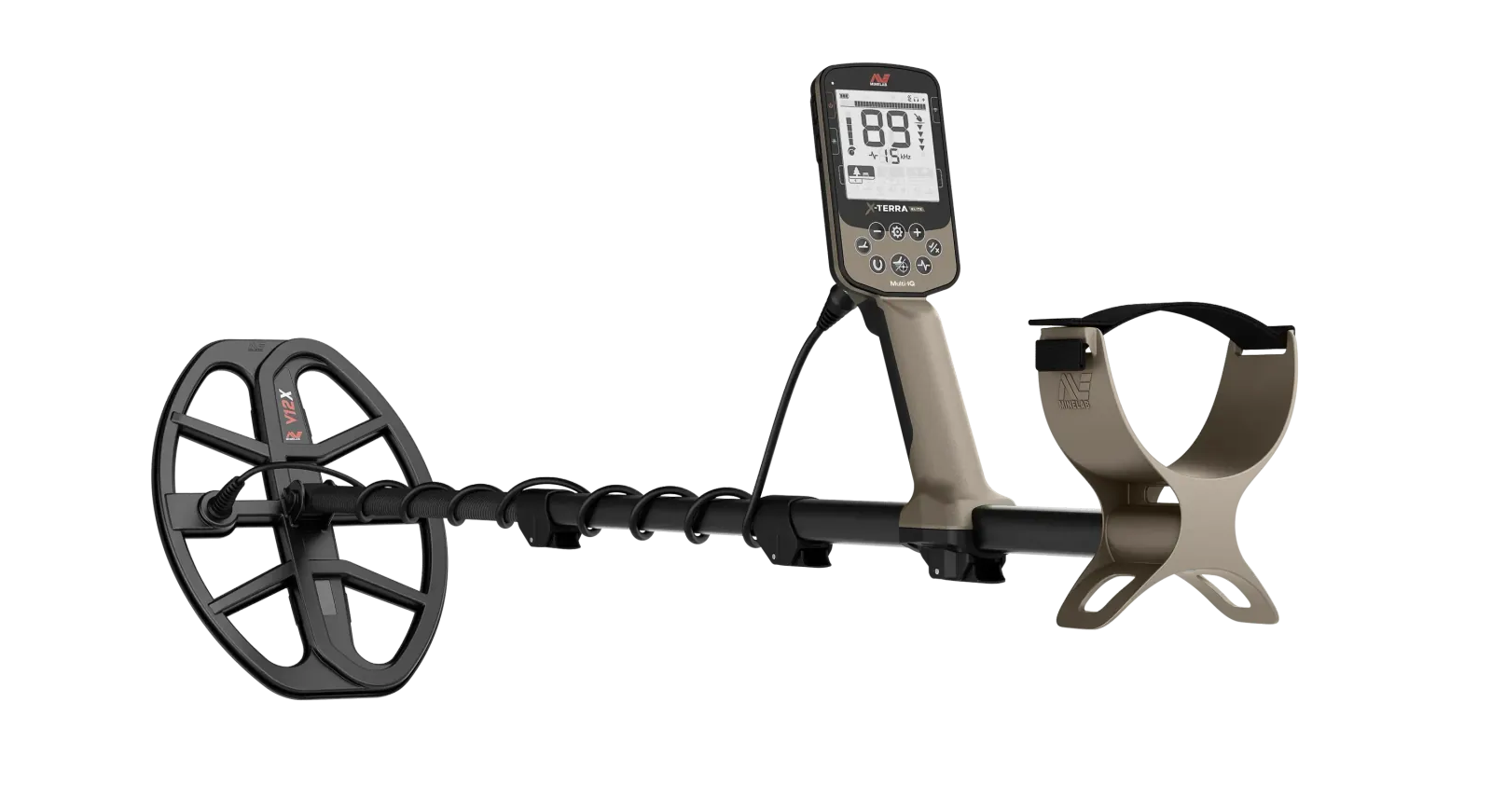

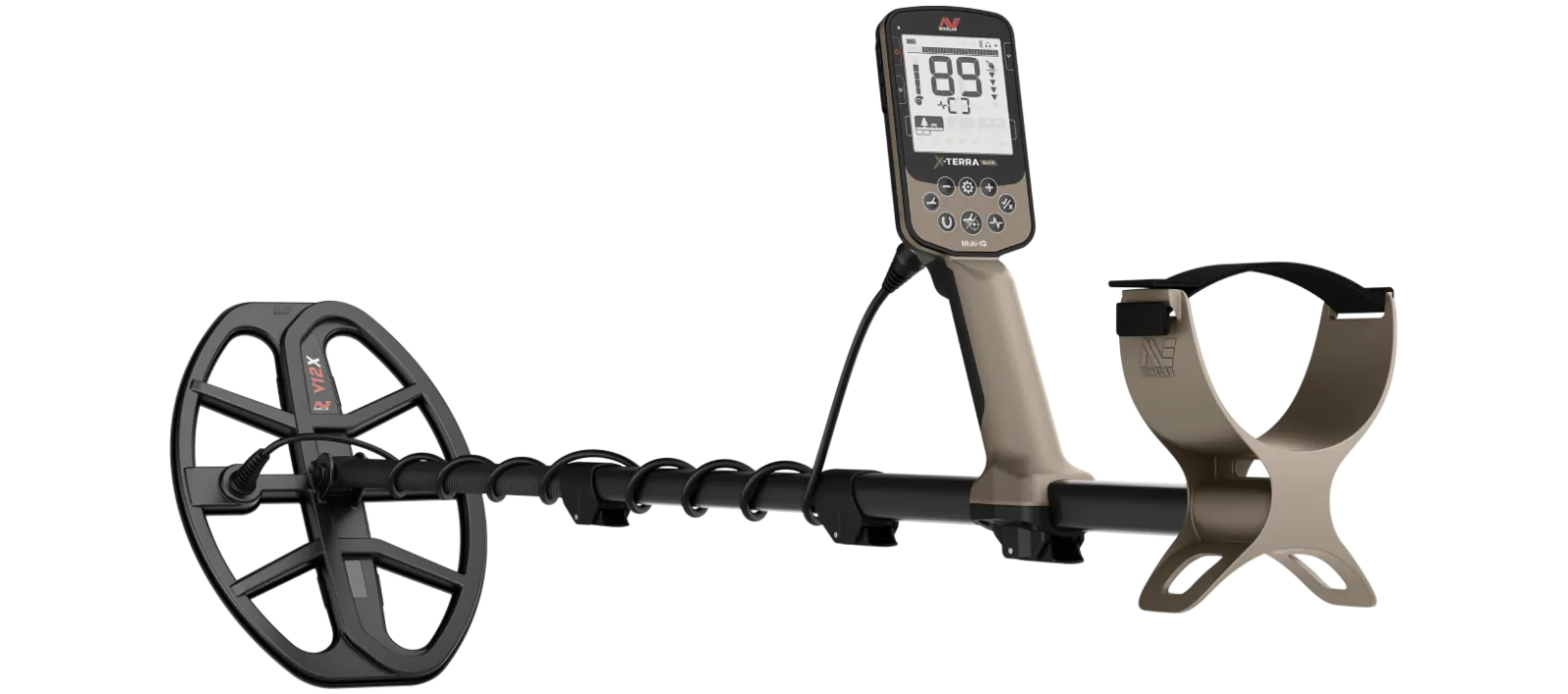

Minelab X-Terra Elite
The flagship model in the X-Terra series, featuring true simultaneous multi-frequency Multi-IQ technology with no manual switching required, full IP68 waterproofing to 5 meters, three search modes with six customizable presets, 119 target ID segments, 4-level advanced iron control, 25 sensitivity levels, pinpoint mode, and low-latency wireless audio.
Overview
Discover the Minelab X-Terra Elite, a device designed for serious, professional-level performance, featuring automatic Multi-IQ technology that delivers stable, reliable results across all soil types. With seamless frequency tuning and enhanced detection clarity, this device removes the guesswork so you can stay focused on the hunt.
The device is fully waterproof up to 5 meters (16 feet) and equipped with advanced iron control and customizable audio control, helping you identify targets with confidence and adapt your detecting experience to changing ground conditions. It brings together accuracy, control, and durability in one feature-rich design.
Key features
Multi-IQ technology
Multiple simultaneous frequencies that run automatically with no manual switching.
Fully waterproof (IP68)
Up to 5 meters, for the most demanding conditions.
Iron/ferrous control
-1 to 2, reducing unwanted signals in mineralized ground.
Full audio control
1, 2, 5, All Tones, and Depth sound modes with 25 volume levels.
High-precision target ID
119 target ID segments for accurate separation and clear readouts.
3 search modes with six presets
Park, Field, and Beach, each with two customizable presets.
Automatic interference cancellation and ground balance
Easier setup and more consistent performance.
Light and vibration
Red backlight and handle vibration alert for any environment.
Internal lithium battery
3.7V / 5100mAh for all-day detecting.
3-year warranty
Covers the device and coil.
Park 1 & 2 mode
Ideal for gardens and busy public areas full of junk, with two savable custom presets.
Field 1 & 2 mode
Designed for farmland and old archaeological sites, balancing depth and discrimination.
Beach 1 & 2 mode
Optimized for wet, salty sand using Multi-IQ technology to reduce false signals.
All Metal mode
Detects all metals with no discrimination, ideal for a quick first scan of a new area.
Technical specifications
| Made In | Australia |
|---|---|
| Warranty | 3 Years |
| Technology | Automatic Multi-IQ simultaneous multi-frequency |
| Park/Field Frequency | Multi-IQ, 15 kHz |
| Beach Frequency | Multi-IQ |
| Search Modes | Park 1-2, Field 1-2, Beach 1-2, All Metal |
| Interference Cancellation | Automatic |
| Sensitivity | 1 to 25 |
| Wireless Audio | Low-latency wireless audio |
| Volume | 0 to 25 |
| Target Tones | 1, 2, 5, All Tones, Depth mode |
| Discrimination Segments | 30 segments |
| Target ID | Ferrous: -19 to 0 / Non-ferrous: 1 to 99 |
| Iron/Ferrous Control | -1 to 2 |
| Depth Indicator | 5 levels |

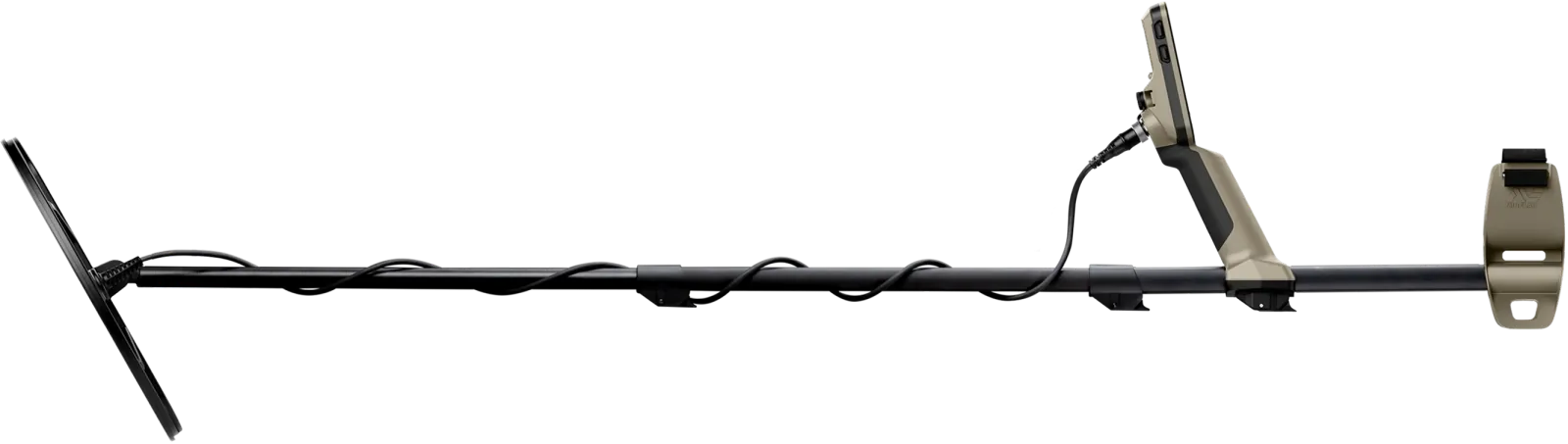

| Length | Extended: 138 cm (54 in) / Folded: 63 cm (25 in) |
| Weight | 1.3 kg (2.9 lb) |
| Search Coil | V12X elliptical Double-D coil, 12x9 inch |

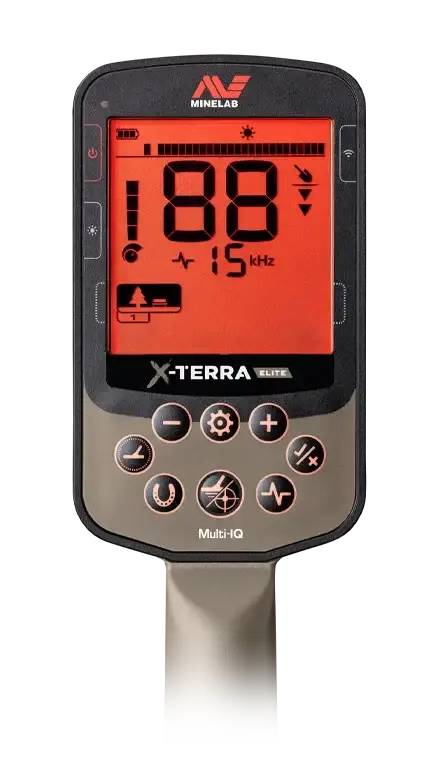

| Display | Monochrome LCD display with red backlight |
| Battery | Internal 3.7V / 5100mAh lithium-ion battery |
| Water Resistance | Full device, up to 5 meters (IP68) |
| Vibration | Can be enabled/disabled, with special vibration for ferrous targets |
| Flashlight | Built-in flashlight |
| Manufacturer | Minelab |
| Capability Tier (site badge) | Professional |
What’s in the box
- Main control unit (control box)
- V12X elliptical 12x9-inch Double-D search coil
- Magnetic USB charging cable
- Built-in flashlight
- User manual
- Warranty certificate
Ideal for
Serious detectorists seeking comprehensive professional performance
A strong fit for serious detectorists seeking comprehensive professional performance with the Minelab X-Terra Elite.
Beach and shallow-water hunting thanks to full waterproofing
A strong fit for beach and shallow-water hunting thanks to full waterproofing with the Minelab X-Terra Elite.
Coin, relic, and jewelry hunting across varied terrain
A strong fit for coin, relic, and jewelry hunting across varied terrain with the Minelab X-Terra Elite.
Mineralized ground requiring precise iron/ferrous control
A strong fit for mineralized ground requiring precise iron/ferrous control with the Minelab X-Terra Elite.
