Minelab X-Terra Pro
A PRO-SWITCH-equipped detector that lets you manually select the operating frequency — 5, 8, 10, or 15 kHz — to match the target and soil type, with full IP68 waterproofing to 5 meters, three search modes (Park, Field, Beach) including a dedicated setting for salt-water beaches, plus a built-in flashlight and vibration alert for low-light use.
Overview
Take full control of your detecting experience with the Minelab X-Terra Pro, a feature-rich device designed to grow with you. Thanks to PRO-SWITCH technology, you can manually select from 4 single frequencies (5, 8, 10, or 15 kHz), giving you the flexibility to adapt your detector to the target and terrain.
This level of control helps you optimize performance across a wide range of conditions. The device is fully waterproof up to 5 meters (16 feet), making it ready to handle wet environments from beaches to shallow streams. Fully customizable audio control and multiple sound modes let you tailor how you hear targets, improving your ability to distinguish valuable finds in challenging ground.
Key features
PRO-SWITCH technology
Manually select from 4 single frequencies (5, 8, 10, 15 kHz).
Fully waterproof (IP68)
Up to 5 meters, for the most demanding conditions.
Full audio control
1, 2, 5, All Tones, and Depth sound modes with 25 volume levels.
Light and vibration
Monochrome red backlight and handle vibration alert for any environment.
3 search modes with six presets
Park, Field, and Beach, each with two customizable presets.
High-precision target ID
119 target ID segments for accurate separation and clear readouts.
Automatic interference cancellation and ground balance
Easier setup and more consistent performance.
Internal lithium battery
3.7V / 5100mAh for all-day detecting.
3-year warranty
Covers the device and coil.
Park 1 & 2 mode
Ideal for gardens and busy public areas full of junk, with two savable custom presets.
Field 1 & 2 mode
Designed for farmland and old archaeological sites, balancing depth and discrimination.
Beach 1 & 2 mode
Optimized for wet, salty sand, operating at 8 kHz to reduce false signals at the waterline.
All Metal mode
Detects all metals with no discrimination, ideal for a quick first scan of a new area.
Technical specifications
| Depth | 4 feet |
|---|---|
| Made In | Australia |
| Warranty | 3 Years |
| Frequency Technology | PRO-SWITCH — manual selection from 4 frequencies |
| Park/Field Frequencies | 5 / 10 / 15 kHz |
| Beach Frequency | 8 kHz |
| Search Modes | Park 1-2, Field 1-2, Beach 1-2, All Metal |
| Interference Cancellation | Automatic |
| Sensitivity | 1 to 25 |
| Wireless Audio | Low-latency wireless audio |
| Volume | 0 to 25 |
| Target Tones | 1, 2, 5, All Tones, Depth mode |
| Discrimination Segments | 30 segments |
| Target ID | Ferrous: -19 to 0 / Non-ferrous: 1 to 99 |
| Depth Indicator | 5 levels |

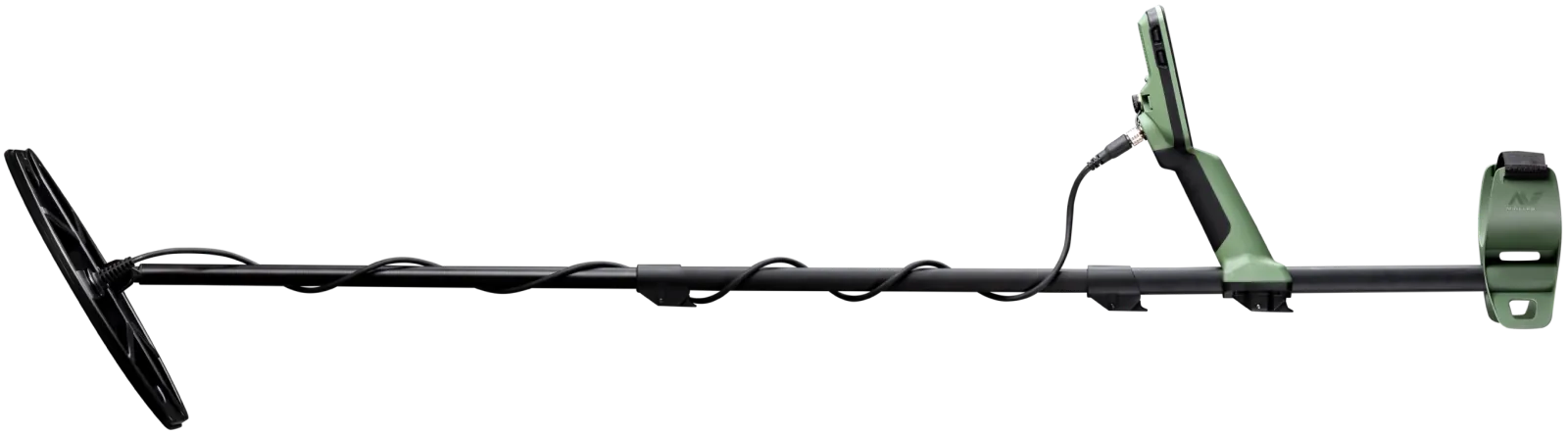

| Length | Extended: 138 cm (54 in) / Folded: 63 cm (25 in) |
| Weight | 1.3 kg (2.9 lb) |
| Search Coil | V12X elliptical Double-D coil, 12x9 inch |

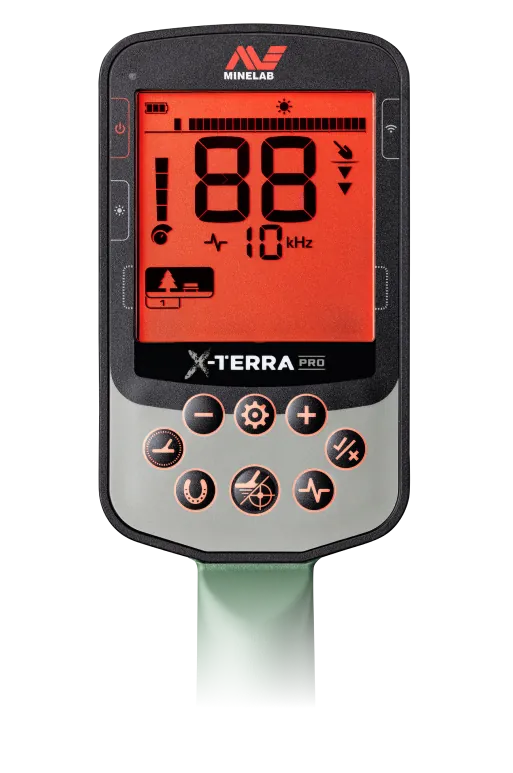

| Display | Monochrome LCD display with red backlight |
| Battery | Internal 3.7V / 5100mAh lithium-ion battery |
| Water Resistance | Full device, up to 5 meters (IP68) |
| Vibration | Can be enabled/disabled, with special vibration for ferrous targets |
| Flashlight | Built-in flashlight |
| Manufacturer | Minelab |
| Capability Tier (site badge) | Advanced |
What’s in the box
- Main control unit (control box)
- V12X elliptical 12x9-inch Double-D search coil
- Magnetic USB charging cable
- Built-in flashlight
- User manual
- Warranty certificate
Ideal for
Detectorists who want manual frequency control
A strong fit for detectorists who want manual frequency control with the Minelab X-Terra Pro.
Beach and shallow-water hunting thanks to full waterproofing
A strong fit for beach and shallow-water hunting thanks to full waterproofing with the Minelab X-Terra Pro.
Coin and relic hunting in parks and fields
A strong fit for coin and relic hunting in parks and fields with the Minelab X-Terra Pro.
Advanced detectorists looking to progressively develop their skills
A strong fit for advanced detectorists looking to progressively develop their skills with the Minelab X-Terra Pro.
